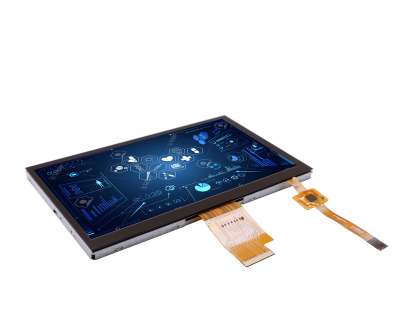

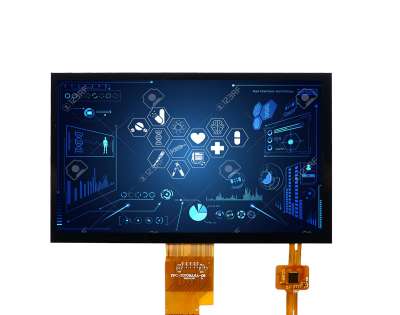

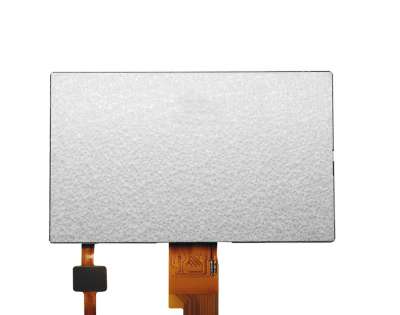

Model : | XH-T070BAHA-43 |
LCD Type: | TFT |
Brand : | Xuhong |
Keywords Desc. | 7inch, 1024*600, 1000nits, 50pins, RGB888, HX8282A11+HX8696A01, ALL Viewing Direction, -20~+70°C |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD, IPS LCD |
Application : | Outdoor High Brightness |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 7" |
Resolution : | 1024×600 |
Aspect Ratio : | 16:9 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 154.21 (W) × 85.92 (H) mm |
Outline Dimension : | 164.8 (W) × 99.8 (H) mm |
Max. Depth : | 5.6mm |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 1000nits |
Contrast Ratio : | 800:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Backlight | WLED |
Display Colors : | 16.7M |
Interface： | TTL |
Interface Pins : | 50Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30 ~ 80 °C |
