Model : | ZW-T101BAEA-01 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 10.1 inches, 1024 * 600, 380nits, MIPI, EK79007AD2, 40pins, -20~+70 ℃ |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, Reflective LCD, Sunlight Readable LCD |
Application : | Digital Photo Frame, Portable DVD Player, Video Door Phone |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 10.1" |
Resolution : | 1024×600 |
Aspect Ratio : | 16:9 (W:H) |
Form Factor : | Flat Rectangle |

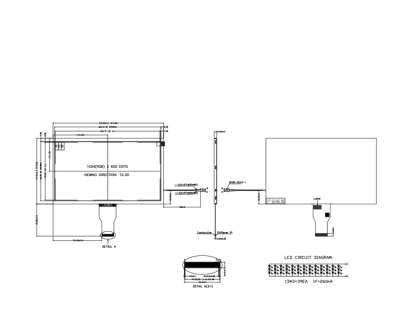

Active Area : | 222.72 (W) × 125.28 (H) mm |
Outline Dimension : | 235 (W) × 143 (H) mm |
Max. Depth : | 5.1 mm |
LC Family : | TN |
Polarizer : | Flat Rectangle |
Brightness : | 380nits |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Backlight | WLED |
Display Colors : | 16.7M |
Interface： | MIPI |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30 ~ 80 °C |
