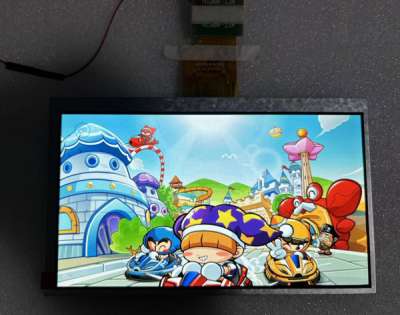

Model : | PC070IA15-B27-L800 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 7 inches, 1024*600, 900nits, LVDS, ultra high brightness, compatible with NJ070NA-23A |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD, IPS LCD |
Application : | Industrial, Outdoor High Brightness |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 7" |
Resolution : | 1024×600 |
Aspect Ratio : | 16:9 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 154.214 (W) × 85.92 (H) mm |
Outline Dimension : | 164.9 (W) × 100 (H) mm |
Max. Depth : | 5.7 mm |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 900nits |
Contrast Ratio : | 800:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Backlight | WLED |
Display Colors : | 16.7M |
Interface： | LVDS |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30 ~ 80 °C |
