Model : | PC080TN64 |
LCD Type | TFT |
Brand : | Xuhong |

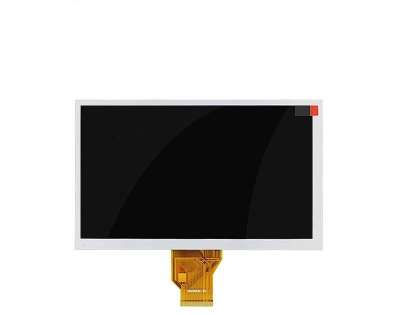

Keywords Desc. | 8.0 inch 800*480 TFT LCD module with 500nits, 50pins RGB, wide temperature, as an alternative to AT080TN64 |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 8" |
Resolution : | 800×480 |
Aspect Ratio : | 16:9 (W:H) |
Form Factor : | Flat Rectangle |

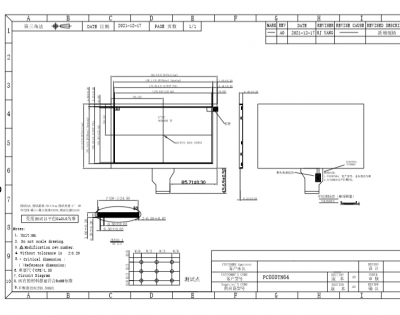

Active Area : | 176.64 (W) × 99.36 (H) mm |
Outline Dimension : | 192.8 (W) × 116.9 (H) mm |
Max. Depth : | 6.4 mm |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 500nits |
Contrast Ratio : | 500:1 (Typ.) |
Viewing Angle : | 70/70/60/70 (L/R/U/D) |
Viewing Direction | 6 o'clock |
Backlight | WLED |
Display Colors : | 16.7M |
Interface： | TTL |
Interface Pins : | 50Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30 ~ 80 °C |
