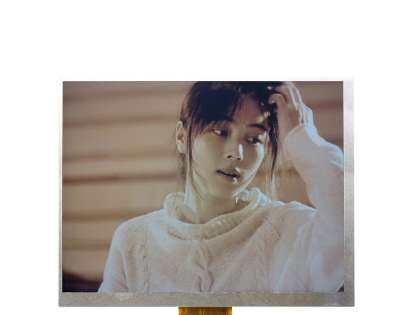

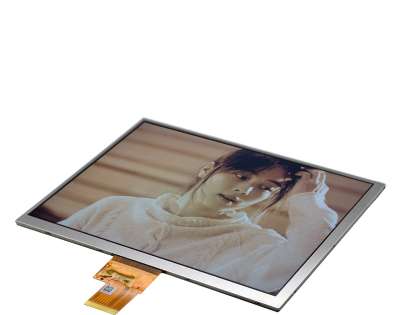

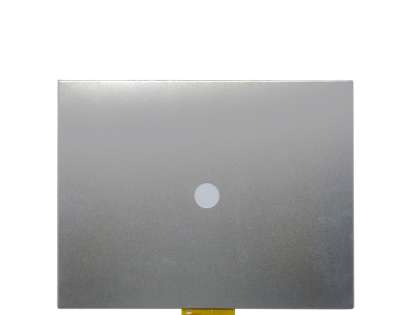

Model : | XH-T080QXH-17 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 8inch, 1024*768, 300nits, 40pins, LVDS, ALL Viewing Direction, 0~+50°C |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 8" |
Resolution : | 1024×768 |
Aspect Ratio : | 4:3 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 162.05 (W) × 121.54 (H) mm |
Outline Dimension : | 182.9 (W) × 141 (H) mm |
Max. Depth : | 5.5 mm |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 300nits |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Backlight | WLED |
Display Colors : | 16.7M |
Interface： | LVDS |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -10 ~ 50 °C |
Storage Temp. : | -20 ~ 60 °C |
