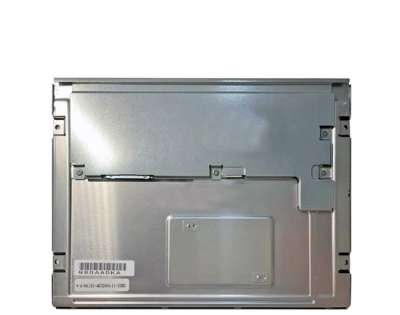

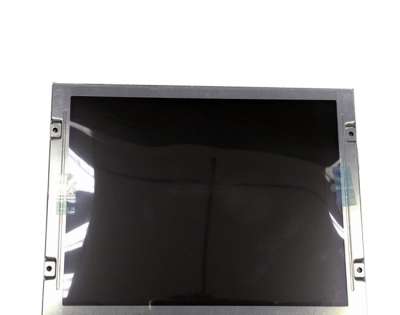

Model : | DS-T084YXHWA-01 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 8.4 inches, 1024x768, 500nits, LVDS, HX8290x2+HX8695 , 20pins, Full view angle, -30~+80 ℃ ultra wide temperature range, compatible with replacing AA084XD01 |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, IPS LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 8.4" |
Resolution : | 1024×768 |
Aspect Ratio : | 4:3 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 170.496 (W) × 127.872 (H) mm |
Outline Dimension : | 199.5 (W) × 149 (H) mm |
Max. Depth : | 10.2 mm |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 500nits |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Backlight | WLED |
Display Colors : | 16.7M |
Interface： | LVDS |
Interface Pins : | 20Pins |
Touch Panel : | Without |
Operating Temp. : | -30 ~ 80 °C |
Storage Temp. : | -30 ~ 80 °C |
