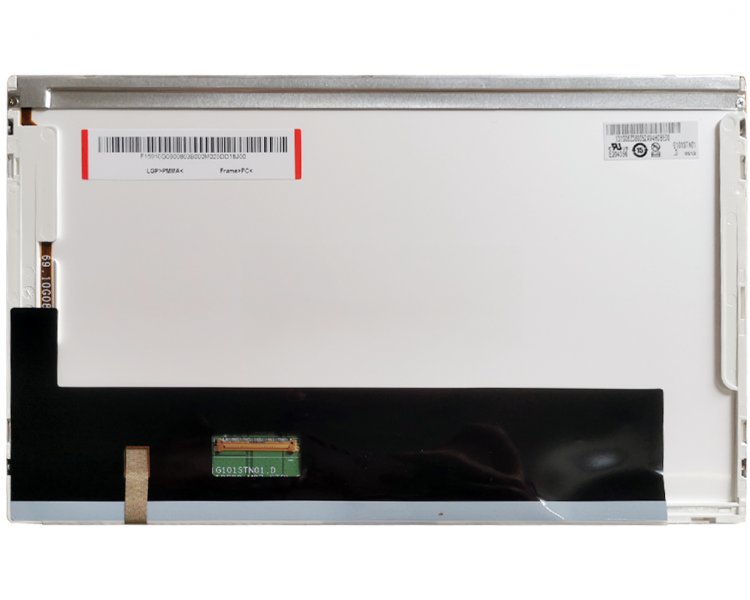

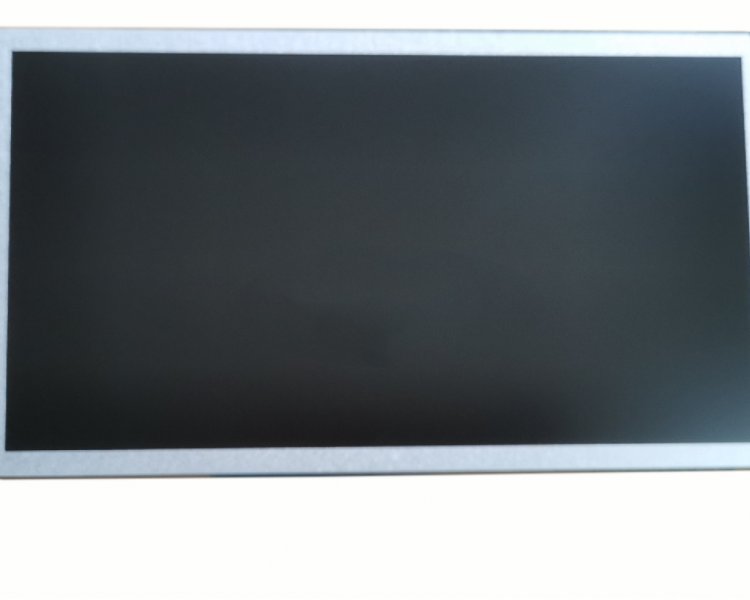

AUO G101EAN02.5 Application Details
| Basic Info : |
Panel Brand |
AUO |
Panel Model |
G101EAN02.5 |
| Diagonal Size |
10.1" |
Application |
Industrial |
| Panel Type |
a-Si TFT-LCD , LCM |
|
|
Reliability :
|
Operating Temp. |
-20 ~ 60 °C |
Storage Temp. |
-20 ~ 60 °C |
| RoHS State |
RoHS |
Vibration Rating |
1.5G (14.7 m/s²) |
| Specific Features : |
WLED Backlight，,With LED Driver，Reverse I/F |
AUO G101EAN02.5 Mechanical Details
| Pixel Features : |
Pixel Format |
1280(RGB)×800, WXGA |
Dot Pitch |
0.0565×0.1695 mm |
| Configuration |
RGB Vertical Stripe |
Pixel Pitch |
0.1695×0.1695 mm [149PPI] |
Mechanical Size :
|
Display Area |
216.96(W)×135.6(H) mm |
Outline Dim. |
227.72(W)×147.8(H) mm |
| Outline Dim. |
- |
Outline Depth |
2.67/4.8 (Typ./Max.) mm |
Outline Features :
|
Form Factor |
Flat Rectangle |
Orientation |
Landscape type |
| Aspect Ratio |
16:10 (H:V) |
Shape Style |
|
| Fixation : |
Without |
| Other Detail : |
Weight |
195g (Typ.) |
Surface |
Hard coating |
AUO G101EAN02.5 Optical Details
| Brightness |
Brightness |
450 cd/m² (Typ.) |
Contrast Ratio |
800:1(Typ.) (Transmissive) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Optical Mode |
AHVA, Normally Black, Transmissive |
| Viewing Direction |
Symmetry |
Response Time |
29 (Typ.)(Tr+Td) ms |
| Color Performance : |
Chromaticity |
Wx:0.313; Wy:0.329 |
Color Numbers |
16.7M (6-bit + Hi-FRC) |
| Color Temperature |
6485K |
Uniformity |
1.43 (Max.)(5 points) |
| 1931 Color Gamut : |
NTSC Ratio |
47% |
sRGB |
66% coverage |
| Adobe RGB |
49% coverage |
DCI-P3 |
49% coverage |
| Rec.2020 |
35% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G101EAN02.5 Electronics Details
| Frame Frequency : |
60Hz |
| Reverse Scan : |
No |
| Power Consumption : |
3.916W (Max.) |
AUO G101EAN02.5 Backlight Details
| Back-light Features : |
Lamp Type |
WLED |
Amount |
- |
Life Time |
20K(Min.) Hours |
| Replacement |
- |
Lamp Shape |
- |
Position |
Edge light type |
| Interface Features : |
Type |
Included in signal interface |
Position |
- |
Lamp Driver |
With LED Driver |
| Driver Electrical : |
Voltage Input |
12.0±1.2V |
Current Input |
218/243mA (Typ./Max.) |
| Consumption |
2.616/2.916W (Typ./Max.) |
AUO G101EAN02.5 Interface Details
| Signal Systerm: |
LVDS (1 ch, 8-bit) |
|
Logic Voltage |
- |
|
| Signal Electrical : |
Voltage Input |
3.3V (Typ.) |
|
Current Input |
278.7/303mA (Typ./Max.) |
| Consumption |
0.92W (Max.) |
| Interface Features : |
Type |
Connector |
|
Position |
Down right of panel |
| Connector Detail : |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Configuration |
| I-PEX |
20765-040E-11A |
0.5 mm |
40 pins |
1 pcs |
|
AUO G101EAN02.5 Carton Details
| Package Carton : |
Amount |
Net Weight |
Carton Size (L×W×H) |
| 40 pcs / box |
- |
484×328×257 mm |
