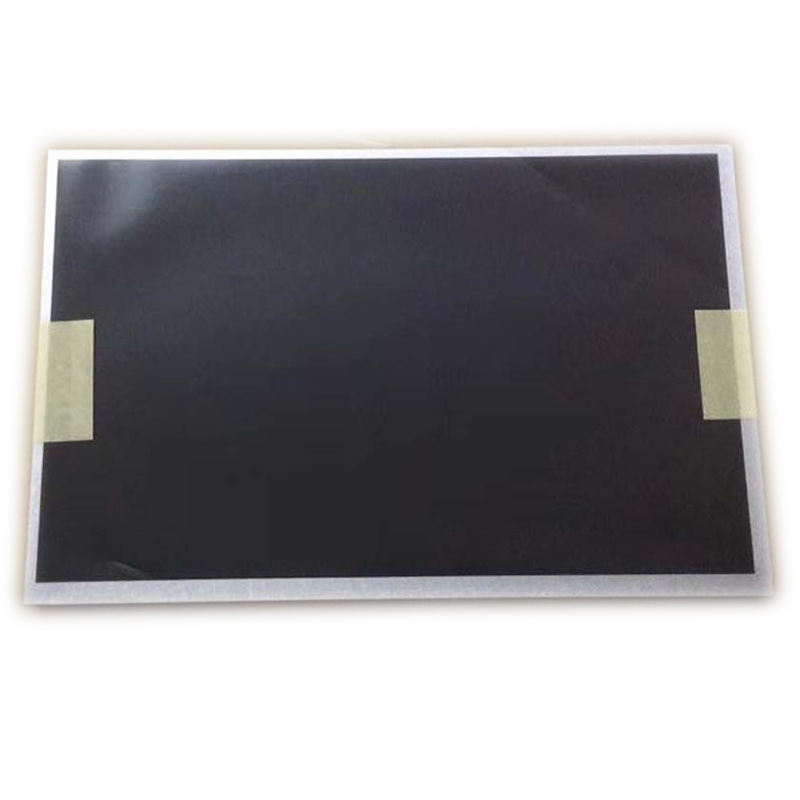

AUO G101EVN01.5 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G101EVN01.5 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | ||
| Panel Size | 10.1inch | Designed For | Idustrial | |
| Maximum Ratings : | OP Temperature | -20~ 60°C | ST Temperature | -30 ~70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | WLED Backlight，With LED Driver，Reverse I/F， 6/8 bit | |||
AUO G101EVN01.5 Optical Details
| Basic Information : | Luminance | 400cd/m² (Typ.) | Contrast Ratio | 1300:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | MVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6485K | White Variation | 1.25 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 65% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G101EVN01.5 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)×800, WXGA | Arrangement | RGB Vertical Stripe | |||
| Dot Pitch(W×H) | 0.0565×0.1695 (H×V) | Pixel Pitch(W×H) | 0.1695×0.1695 (H×V) [149PPI] | ||||
| Physical Size : | Active Viewing(mm) | 216.96(H) × 135.6(V) | Outline Dim.(mm) | 229.46(H) × 149.2(V) | |||
| Bezel Opening(mm) | 220.36(H) × 139.1(V) | Overall Depth(mm) | 3.65/5.44 (Typ./Max.) | ||||
| Outline Features : | Form Style | Flat Rectangle | Shape Style | ||||
| Aspect Ratio | 16:10(H:V) | Orientation | Landscape type | ||||
| Mounting : | Without | ||||||
| Other Detail : | Weight | 190g (Max.) | Treatment | Hard coating, Reflection 1.5% (Typ.) | |||
AUO G101EVN01.5 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 3.4W (Max.) |
AUO G101EVN01.5 Interface Detail
| Signal Electrical : | Input Current | 170/245mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | |||
| Consumption | 0.56/0.8W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) | ||||
| Logic Voltage for Signals : | - | ||||||
| Interface Features : | Position | Rear | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |
| JAE | HD1S040HA1 | 0.5mm | 40pins | 1 pcs | |||
AUO G101EVN01.5 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | ||
| Exchange | - | Lamp Shape | - | Lamp Life | 20K(Min.) (Hours) | |||
| Driver Electrical : | Voltage Input | 5.5/12V (Min./Max.) | Current Input | 217mA (Max.) | ||||
| Consumption | 1 2.6W (Max.) | |||||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||||
| Backlight Driver : | With LED Driver | |||||||
AUO G101EVN01.5 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
| 40pcs / box | 9.2Kgs |
484×328×257 mm |
