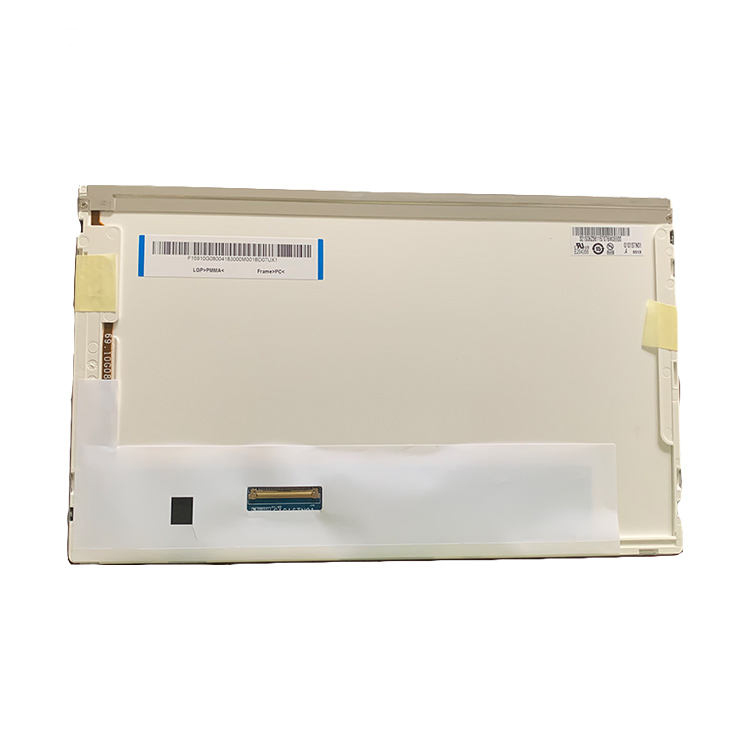

AUO G101STN01.4 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G101STN01.4 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | ||
| Panel Size | 10.1inch | Designed For | Idustrial | |
| Maximum Ratings : | OP Temperature | -10~ 60°C | ST Temperature | -30 ~ 70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | WLED Backlight，Life>=50k hours, With LED Driver， Reverse I/F，6/8bit，Matte | |||
AUO G101STN01.4 Optical Details
| Basic Information : | Luminance | 350cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 7/9 (Typ.)(Tr+Td) ms | |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 64% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 47% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G101STN01.4 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)×600, WSVGA | Arrangement | RGB Vertical Stripe | |||
| Dot Pitch(W×H) | 0.0725×0.2088 mm | Pixel Pitch(W×H) | 0.2175×0.2088 mm [117PPI] | ||||
| Physical Size : | Active Viewing(mm) | 222.72(W)×125.28(H) mm | Outline Dim.(mm) | 226.43×128.1 mm (H×V) | |||
| Bezel Opening(mm) | 235×143 mm (H×V) | Overall Depth(mm) | 4.9±0.3 mm | ||||
| Outline Features : | Form Style | Flat Rectangle | Shape Style | ||||
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | ||||
| Mounting : | Side mounting holes (4-M3) on left, right bezel | ||||||
| Other Detail : | Weight | 180g (Typ.) | Treatment | Antiglare, Hard coating (3H) | |||
AUO G101STN01.4 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 3.53W (Typ.) |
AUO G101STN01.4 Interface Detail
| Signal Electrical : | Input Current | 140/160mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | |||
| Consumption | 0.53W (Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) | ||||
| Interface Features : | Position | Rear | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |
| I-PEX | 20455-040E-12R | 0.5mm | 40pins | 1 pcs | |||
AUO G101STN01.4 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | |||||
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Typ.) (Hours) | ||||||
| Driver Electrical : | Voltage Input | 12.8/13.6V (Typ./Max.) | Current Input | 35mA (Typ.) | |||||||
| Consumption | |||||||||||
| Interface Features : | Position | - | Type | Included in panel signal interface | |||||||
| Backlight Driver : | With LED Driver | ||||||||||
| Driver Electrical : | Voltage Input | 4.0/5.0/7.5V (Min./Typ./Max.) | Current Input | 515/600mA (Typ./Max.) | |||||||
| Consumption | 2.58/3.0W (Typ./Max.) | ||||||||||
AUO G101STN01.4 Packing Details
| Package Box : | Amount | Size (L×W×H) | Weight |
| 35pcs / box | 484×328×257 mm | 9.0 Kgs |
