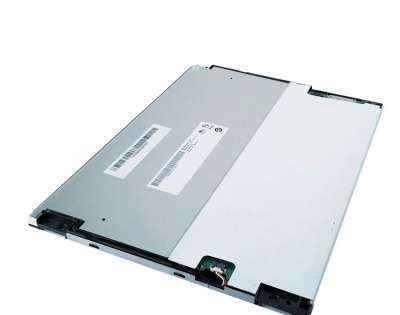

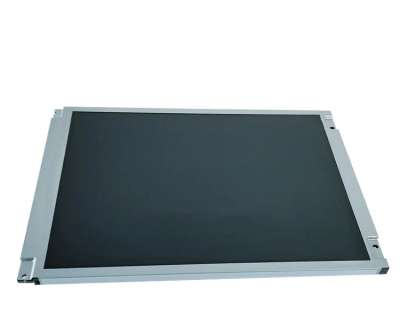

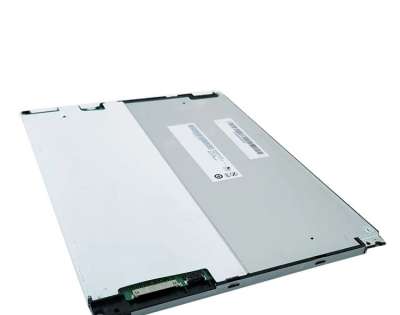

1.AUO G104VN01 V111 Application Features
Basic Information : | Brand | Model | Type | Model Alias |
AUO | G104VN01 V111 | a-Si TFT-LCD , LCM | - | |
Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
RoHS | -30 ~ 85 °C | -30 ~ 85 °C | - | |
Designed For : | Industrial | |||
Specific Features : | Wide Temperature，Lamp Repaceable，WLED Backlight，Life≥50K hours，With LED Driver，180° Reverse，6/8 bit，Matte | |||
2. AUO G104VN01 V111 Mechanical Features
Panel Size : | 10.4 inch | |||
Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
211.2×158.4 mm | 214.8×162.4 mm | 243×176.6 mm | 8.5±0.5 mm | |
Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
Flat Rectangle | 4:3 (W : H) | Landscape type | ||
Fixation : | Face mounting holes (1-Φ3.4, 3-R1.7) on left, right bezel | |||
Other Features : | Panel Cover | Weight | Surface | |
- | 355g (Typ.) | Antiglare, Hard coating (3H) | ||
3. AUO G104VN01 V111 Optical Features
Basic Information : | Brightness | Operating Mode | Contrast Ratio |
450 cd/m² (Typ.) | TN, Normally White, Transmissive | 700:1 (Typ.) (Transmissive) | |
Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
80/80/60/80 (Typ.)(CR≥10) | 6 o'clock | 20/10 (Typ.)(Tr/Td) (ms) | |
Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
6638K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.310; Y:0.330 | |
1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
46% | 65% | 49% | |
DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
48% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Luminance Variation : | 1.33 (Max.)(5 points) | ||
4. AUO G104VN01 V111 Electronics Features
Power Consumption : | 5.2W (Typ.) |
Frame Rate : | 60Hz |
Reverse Scan : | Yes (180°) |
5. AUO G104VN01 V111 Interface Features
Signal Electrical : | Current Input | Voltage Input | Consumption | |||
120mA (Typ.) | 3.3V (Typ.) | 0.396W (Typ.) | ||||
Interface Features : | Position | Type | Interface | |||
- | Connector | LVDS (1 ch, 6/8-bit) | ||||
Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
STM | MSB24013P20HA | 1 pcs | 1.0 mm | 20 pins | LVDS-20P1C8B-080A | |
6. AUO G104VN01 V111 Backlight Features
Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
WLED | Edge light type (Bottom side) | 2 strings | 8S2P | 50K(Min.) | Replaceable | |
WLED Electrical : | Current Input | Voltage Input | Consumption | |||
80mA (Typ.) | 25.5/29.2V (Typ./Max.) | 4.1W (Typ.) | ||||
Interface Features : | Position | Type | WLED Driver | |||
- | Connector | With LED Driver | ||||
Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
STM | MSB24038P5D | 1 pcs | 1.25 mm | 5 pins | ||
Driver Electrical : | Current Input | Voltage Input | Consumption | |||
0.4A (Typ.) | 10.8/12.0/12.6V (Min./Typ./Max.) | 4.8W (Typ.) | ||||
7. AUO G104VN01 V111 Packing Features
Package Type | Pcs/Package | Package LWH (mm) | G.W (kgs) |
20 | 483×285×355 | 10.00 |
