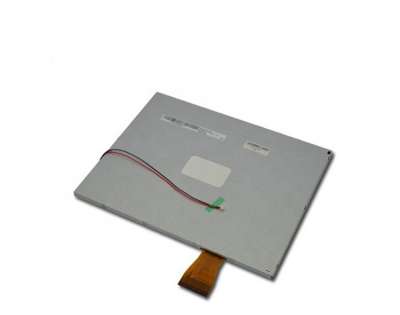

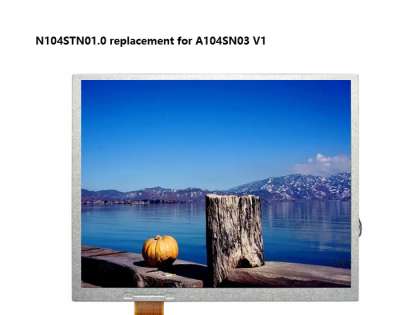

1. AUO N104STN01.0 Application Details
Basic Detail : | Manufacturer | AUO | Model Name | N104STN01.0 |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Panel Size | 10.4 inch | Designed For | Industrial |
Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
Vibration Level | - | RoHS | RoHS |
Features : | WLED Backlight,6/8bit,Matte |
2. AUO N104STN01.0 Mechanical Details
Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.088×0.264 mm | Pixel Pitch(W×H) | 0.264×0.264 mm [96PPI] |
Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 228.4(W)×175.4(H) mm |
Bezel Opening | 213.2(W)×160.4(H) mm | Overall Depth | 6.2±0.3 mm |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 4:3 | Shape Style |
|
Fixation : | Without |
Other Detail : | Mass | 400±20g | Surface | Antiglare, Hard coating (3H) |
3. AUO N104STN01.0 Optical Details
Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
Good View at | 6 o'clock | Response Speed | 30 (Typ.)(Tr+Td) (ms)
|
Viewing Angle | 75/75/50/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
Color Performance : | Chromaticity | Wx:0.306; Wy:0.328 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6880K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 50% | sRGB | 70% coverage |
Adobe RGB | 53% coverage | DCI-P3 | 52% coverage |
Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. AUO N104STN01.0 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 3.16W (Typ.) |
Time Controller (T-CON) : | Embedded T-CON |
5. AUO N104STN01.0 Interface Details
Signal Electrical : | Input Current | 9/13/0.42/0.45mA (Typ.)(IDDIO/AIDD/IGH/IGL) | Input Voltage | 3.3/11.5/21/-7V (Typ.)(VDDIO/AVDD/VGH/VGL) |
Consumption | 192mW (Max.) | Signal Interface | Parallel RGB (1 ch, 6/8-bit) |
Logic Voltage for Signals : | 0≤VIL≤0.3VDDIO; 0.7VDDIO≤VIH≤VDDIO |
Interface Features : | Position | - |
| Physical Type | FPC
|
|
Signal Interface : | Brand | Model | Amount | Pin Pitch
| Pin Amount | Pin Assignment |
|
| 1 pcs | 0.5 mm | 60 pins |
|
6. AUO N104STN01.0 Lightting Details
Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type (Bottom side) |
Exchange | - | Amount | 3S6P | Life | 10K(Min.) (Hours) |
Lamp Electrical :
| Input Current | 300mA (Typ.) | Input Voltage | 8.1V (Typ.) |
Consumption | 2.72/2.97W (Typ./Max.) |
Interface Features : | Position | - |
| Physical Type | Connector |
Interface Detail : | Brand
| Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| A1251-H02 | 1 pcs | 1.25 mm | 2 pins | BLE-2PINS-AC |
Backlight Driver : | No |
7. AUO N104STN01.0 Packing Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 32 | 1 | 544×374×376 | 16.16 | 0.0765 |
