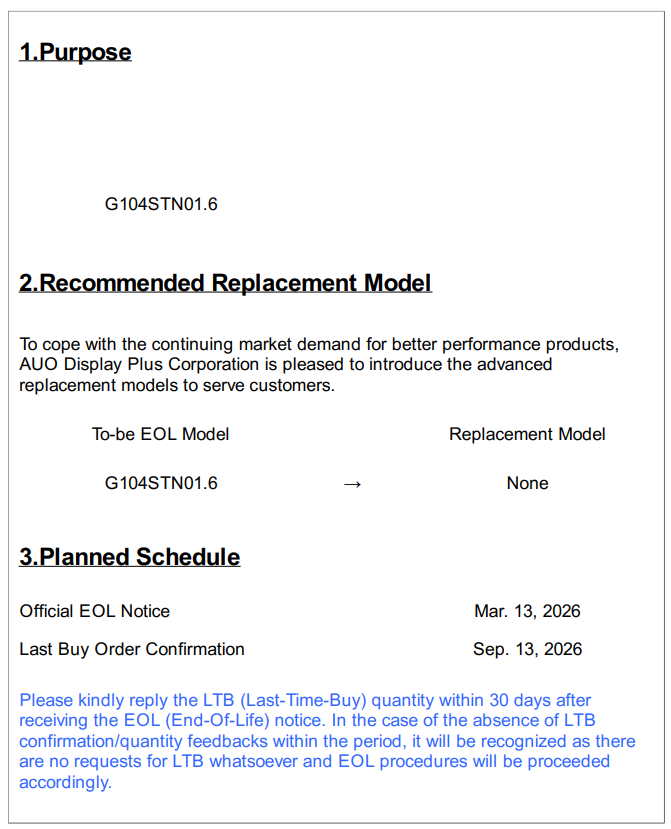

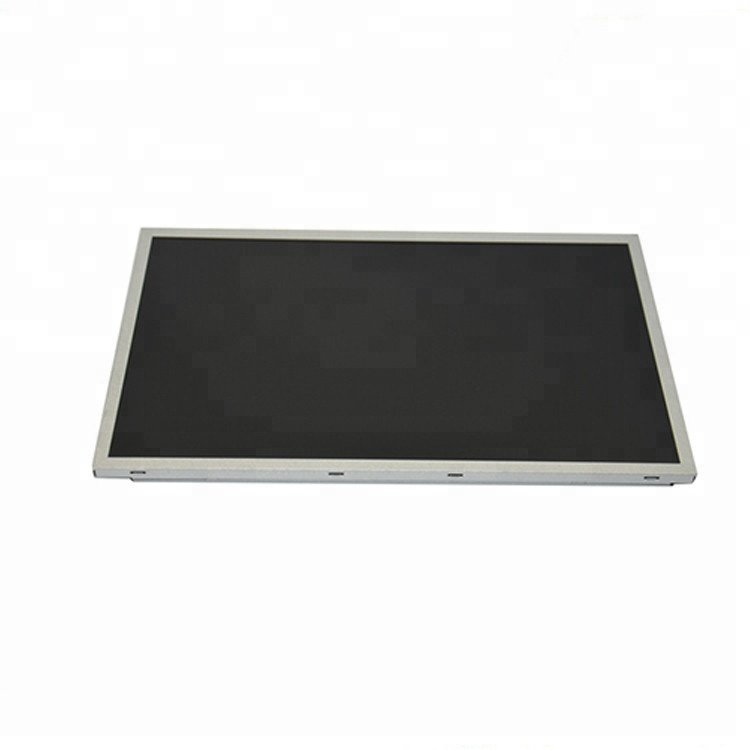

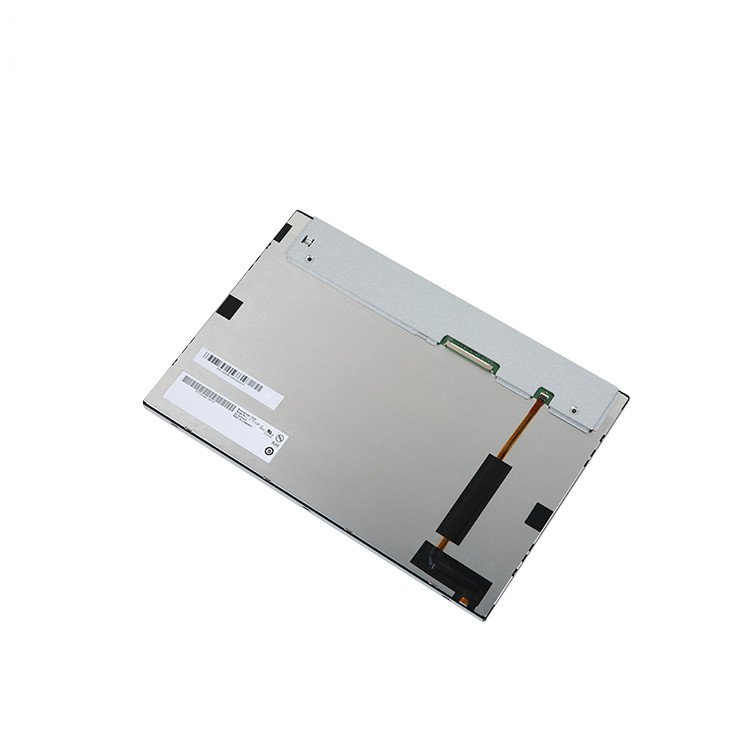

| Basic Info : | Panel Brand | AUO | Panel Model | G104STN01.6 |
| Diagonal Size | 10.4" | Application | Industrial | |
| Panel Type | a-Si TFT-LCD , LCM | |||
| Reliability : |
Operating Temp. | -30 ~ 80 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) | |
| Specific Features : | Wide Temperature,Hight Brightness，WLED Backlight，Life>=50K hours,With LED Driver，180°Reverse ，6/8 bit，Matte | |||
| Pixel Features : | Pixel Format | 800(RGB)×600, SVGA | Dot Pitch | 0.088×0.264 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.264×0.264 mm (H×V) [96PPI] | |
| Mechanical Size : |
Display Area | 211.2×158.4 mm (H×V) | Outline Dim. | 215.4×161.9 mm (H×V) |
| Outline Dim. | 227.3×177.5 mm (H×V) | Outline Depth | 6.4/9.3 (Typ./Max.) mm | |
| Outline Features : |
Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 294g (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Brightness | Brightness | 700 cd/m² (Typ.) | Contrast Ratio | 800:1(Typ.) (Transmissive) |
| Viewing Angle | 80/80/60/70 (Typ.)(CR≥10) |
Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 10/5 (Typ.)(Tr/Td) ms | |
| Color Performance : | Chromaticity | Wx:0.307; Wy:0.329 | Color Numbers |
262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature |
6813K | Uniformity | 1.33/1.54 (Typ./Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 53% |
sRGB |
73% coverage |
Adobe RGB |
55% coverage |
DCI-P3 | 55% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Back-light Features : | Lamp Type | WLED | Amount | 6S3P | Life Time | 50K(Min.) Hours |
| Replacement | No | Lamp Shape | 3 strings | Position | Edge light type (Bottom side) | |
| Lamp Electrical : |
Voltage Input | 18.6/20.4V (Typ./Max.) | Current Input | 65mA (Typ.) | ||
| Consumption | 3.627W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-S6P-HFE | 1.25 mm | 6 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 0.33/0.363A (Typ./Max.) | ||
| Consumption | 3.96/4.356W (Typ./Max.) | |||||
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | ||||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 320mA (Typ.) | |||||||
| Consumption | 1.5W (Max.) | ||||||||||
| Interface Features : | Type | Connector | Position | - | |||||||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||||
| JAE | FI-SEB20P-HFE | 1.25 mm | 20 pins | 1 pcs |
|||||||
| Package Box : | Amount | Size (L×W×H) | Weight |
| 20 pcs / box | 450×275×320 mm | 8.48 Kgs |
