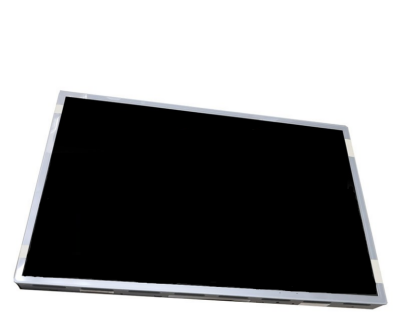

1、AUO G121STN02.1 Application Details
Basic Detail : | Manufacturer | AUO | Model Name | G121STN02.1 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 12.1 inch | Designed For | Industrial | |
Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
Vibration Level | 1.5G (14.7 m/s²) | RoHS | RoHS | |
Features : | Wide Temperature，Ultra High Brightness，WLED Backlight，Life>=70k hours,With LED Driver,Reverse I/F,180°Reverse，6/8 bit，Matte | |||
2、AUO G121STN02.1 Optical Details
Basic Information | Luminance | 1500 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
Good View at | 6 o'clock | Response Speed | 25/10 (Typ.)(Tr/Td) (ms) | |
Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Operating Mode | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
Color Temperature | Wx:0.313; Wy:0.329 | White Uniformity | 1.33 (Max.)(5 points) | |
1931 Color Gamut : | NTSC Ratio | 53% | sRGB | 72% coverage |
Adobe RGB | 55% coverage | DCI-P3 | 55% coverage | |
Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
3、AUO G121STN02.1 Mechanical Details
Pixel Features : | Number of Pixel | 800(RGB)×600, SVGA | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.1025×0.3075 mm | Pixel Pitch(W×H) | 0.3075×0.3075 mm [82PPI] | |
Physical Size : | Active Viewing | 246(W)×184.5(H) mm | Overall Dim. | 261.65(W)×203(H) mm |
Bezel Opening | 249(W)×187.5(H) mm | Overall Depth | 6.0/9.0 (Typ./Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | |
Aspect Ratio(W:H) | 4:3 | Shape Style | ||
Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
Other Features : | Weight | 600g (Max.) | Surface | Antiglare, Hard coating (3H) |
4、AUO G121STN02.1 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | Yes (180°) |
Power Consumption : | 7.2W (Typ.) |
5、AUO G121STN02.1 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 80K(Min.) Hours |
Replacement | No | Lamp Shape | - | Position | Edge light type | |
Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
E&T | 3808K-F05N-12R | 1.25 mm | 5 pins | 1 pcs | ||
Driver Electrical : | Voltage Input | 12±1.2V | Current Input | 600/650mA (Typ./Max.) | ||
Consumption | 7.2/7.8W (Typ./Max.) | |||||
6、AUO G121STN02.1 Interface Detail
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 200/240mA (Typ./Max.) | ||
Consumption | 660/792mW (Typ./Max.) | |||||
Signal Type : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
Interface Features : | Position | Down right of panel | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
STM | MSB240420HE | 1.25 mm | 20pins | 1pcs | LVDS-20P1C8B-010H | |
7、AUO G121STN02.1 Packing Details
Package Box : | Quantity | Weight | Box Size |
20 pcs / box | 15.0 Kgs | 570×320×420 mm (L×W×H) |
