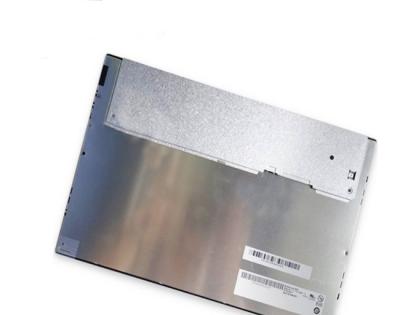

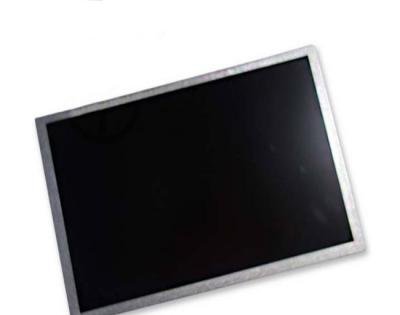

AUO G121EAN01.1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G121EAN01.1
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 12.1inch | Designed For | Idustrial，Medical Imaging |
| Maximum Ratings : | OP Temperature | -30 ~ 85°C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Srgb，Wide Temperature，WLED Backlight，Life>=50K hours,With LED Driver, Matte,6/8 bit |
AUO G121EAN01.1 Optical Details
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.33 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 99% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G121EAN01.1 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*800 [WXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.068*0.204 mm | Pixel Pitch(W×H) | 0.204*0.204 mm [124PPI] |
| Physical Size : | Active Viewing(mm) | 261.12(W)*163.2(H) mm | Outline Dim. | 264.22*168.12 mm (H*V) |
| Outline Dim. | 278*184 mm (H*V) | Depth(mm) | 9.29 (Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M2) on left, right bezel |
| Other Spec : | Weight | 480g (Max.) | Treatment | Antiglare, Hard coating (3H) |
AUO G121EAN01.1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 7.05W (Max.) |
AUO G121EAN01.1 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 458mA (Max.) |
| Consumption | 1.65W (Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| STARCONN | 093G30-B0001A-1 | 1.0mm | 30 pins | 1 pcs | LVDS-30P1C8B-105A |
AUO G121EAN01.1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 0.45A (Typ.) | Current Supply | 10/12/15V (Min./Typ./Max.) |
| Consumption |
5.4W (Typ.) |
AUO G121EAN01.1 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 20 pcs / box | 15.5 Kgs | 450*375*320 mm (L*W*H) |
