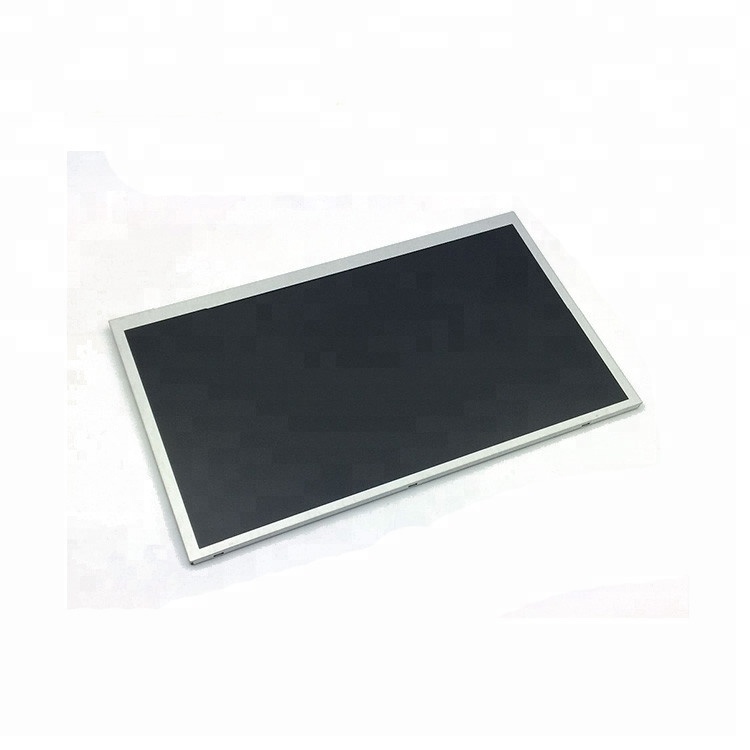

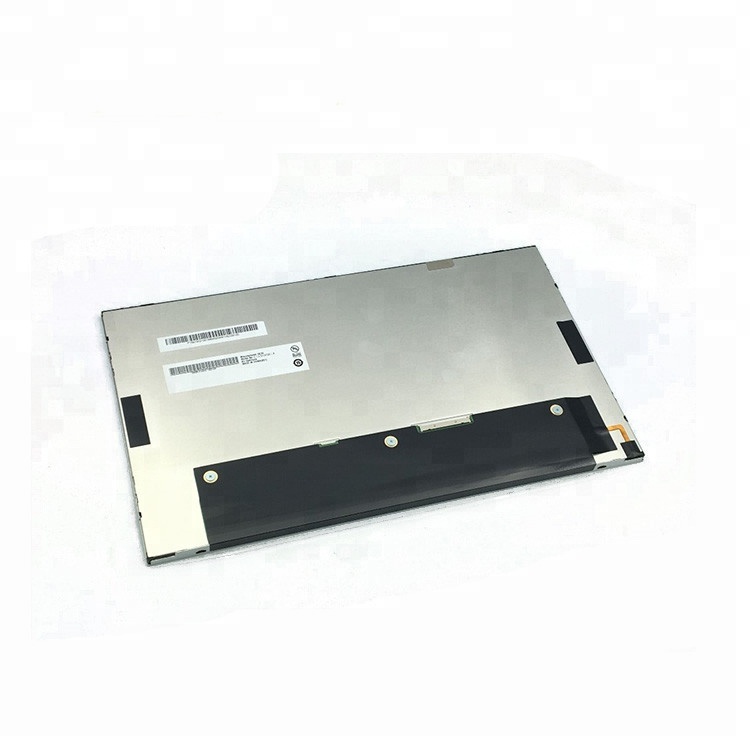

AUO G133HAN01.0 Application Details
| Basic Detail : |
Manufacturer |
AUO |
Model Name |
G133HAN01.0 |
| Panel Type |
a-Si TFT-LCD , LCM |
Model Alias |
|
| Panel Size |
13.3inch |
Designed For |
Idustrial，Medical Imaging，Gaming |
| Maximum Ratings : |
OP Temperature |
-20 ~ 70°C |
ST Temperature |
-20 ~ 70 °C |
| RoHS |
RoHS |
Vibration Level |
1.5G (14.7 m/s²) |
| Features : |
Wide Color Gamut，DCI-P3，sRGB, WLED Backlight，Life>=50k hours, With LED Driver, Matte |
AUO G133HAN01.0 Optical Details
| Basic Information : |
Luminance |
400cd/m² (Typ.) |
Contrast Ratio |
800:1 (Typ.) (Transmissive) |
| Good View at |
Symmetry |
Response Speed |
25 (Typ.)(Tr+Td) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Operating Mode |
AHVA, Normally Black, Transmissive |
| Color Performance : |
Chromaticity |
Wx:0.313; Wy:0.329 |
Support Color |
16.7M (8-bit) |
| Color Temperature |
6485K |
White Variation |
1.25/1.33 (Typ./Max.)(5 points) |
| 1931 Color Gamlt : |
NTSC Ratio |
90% |
sRGB |
100% coverage |
| Adobe RGB |
82% coverage |
DCI-P3 |
90% coverage |
| Rec.2020 |
67% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G133HAN01.0 Mechanical Details
| Pixel Features : |
Number of Pixel |
1920(RGB)×1080, FHD |
Arrangement |
RGB Vertical Stripe |
| Dot Pitch(W×H) |
0.05095×0.15285 mm |
Pixel Pitch(W×H) |
0.15285×0.15285 mm [166PPI] |
| Physical Size : |
Active Viewing(mm) |
293.472(H) × 165.078(V) |
Outline Dim.(mm) |
309.7(H) × 184.1(V) |
| Bezel Area(mm) |
295.07(H) × 166.68(V) |
Depth(mm) |
10.1 (Max.) |
| Outline Features : |
Form Style |
Flat Rectangle |
Outline Shape |
|
| Aspect Ratio |
16:9 (H:V) |
Orientation |
Landscape type |
| Mounting : |
Side mounting holes (4-M2) on left, right bezel |
| Other Spec : |
Weight |
500g (Max.) |
Treatment |
Antiglare |
AUO G133HAN01.0 Electronics Details
| Refresh Rate : |
60Hz |
| Reverse Scan : |
No |
| Total Consumption : |
16.8W (Typ.) |
AUO G133HAN01.0 Interface Detail
| Signal Electrical : |
Voltage Supply |
3.3V (Typ.) |
Current Supply |
500mA (Max.) |
| Consumption |
1.8W (Max.) |
Signal Interface |
LVDS (2 ch, 8-bit) |
| Interface Features : |
Position |
- |
Type |
Connector |
| Interface Detail : |
Brand |
Model |
Pitch |
Pins |
Quantity |
Pin Configuration |
| HRS |
DF19K-30P-1H(54) |
1.0mm |
30 pins |
1 pcs |
|
AUO G133HAN01.0 Backlight Details
| Lamp Features : |
Lamp Type |
WLED |
Quantity |
- |
Position |
Edge light type |
| Exchange |
- |
Lamp Shape |
- |
Lamp Life |
50K(Min.) (Hours) |
| Interface Features : |
Position |
- |
Physical Type |
Connector |
| Interface Detail : |
Brand |
Model |
Amount |
Pin Pitch |
Pin Amount |
Pin Assignment |
| HRS |
DF19G-8P-1H(54) |
1 pcs |
1.0 mm |
5 pins |
|
| Backlight Driver : |
With LED Driver |
| Driver Electrical : |
Voltage Supply |
12±1.2V |
Current Supply |
1.25A (Typ.) |
| Consumption |
15W (Max.) |
AUO G133HAN01.0 Packing Details
| Package Box : |
Quantity |
Weight |
Box Size |
| 20 pcs / box |
10.5 Kgs |
480×275×450 mm (L×W×H) |
