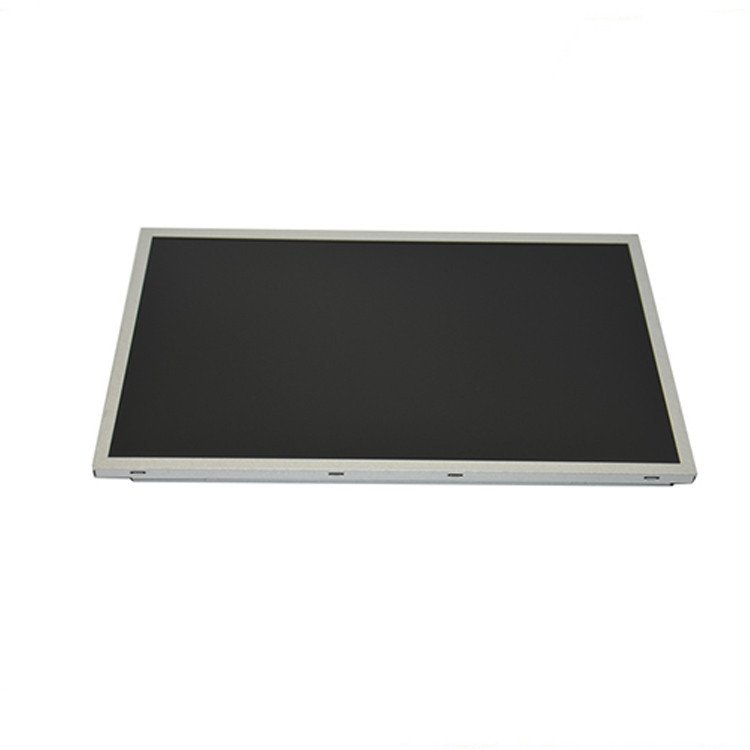

AUO G133HAN01.1 Application Details
| Basic Info : |
Panel Brand |
AUO |
Panel Model |
G133HAN01.1 |
| Diagonal Size |
13.3 inch |
Application |
Industrial，Medical Imaging，Gaming |
| Panel Type |
a-Si TFT-LCD , LCM |
|
|
Reliability :
|
Operating Temp. |
-20 ~ 70 °C |
Storage Temp. |
-20 ~ 70 °C |
| RoHS State |
RoHS |
Vibration Rating |
1.5G (14.7 m/s²) |
| Specific Features : |
Wide Color Gamut，DCI-P3，Srgb, WLED Backlight，Life>=50K hours,With LED Driver， Matte |
AUO G133HAN01.1 Mechanical Details
| Pixel Features : |
Pixel Format |
1920(RGB)×1080, FHD |
Dot Pitch |
0.05095×0.15285 (H×V) |
| Configuration |
RGB Vertical Stripe |
Pixel Pitch |
0.15285×0.15285 (H×V) [166PPI] |
Mechanical Size :
|
Display Area (mm) |
293.472(H) × 165.078(V) |
Outline Dim (mm). |
295.07(H) × 166.68(V) |
| Outline Dim. (mm) |
309.7(H) × 184.1(V) |
Outline Depth (mm) |
10.1 (Max.) |
Outline Features :
|
Form Factor |
Flat Rectangle |
Orientation |
Landscape type |
| Aspect Ratio |
16:9 (H:V) |
Shape Style |
|
| Holes & Brackets : |
Side mounting holes (4-M2) on left, right bezel |
| Other Features : |
Weight |
500g (Max.) |
Surface |
Antiglare |
AUO G133HAN01.1 Optical Details
| Brightness |
Brightness |
400 cd/m² (Typ.) |
Contrast Ratio |
800:1(Typ.) (Transmissive) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Optical Mode |
AHVA, Normally Black, Transmissive |
| Viewing Direction |
Symmetry |
Response Time |
25 (Typ.)(Tr+Td) |
| Color Performance : |
Chromaticity |
Wx:0.313; Wy:0.329 |
Color Numbers
|
16.7M (8-bit) |
| Color Temperature |
6485K |
Uniformity |
1.25/1.33 (Typ./Max.)(5 points) |
| 1931 Color Gamut : |
NTSC Ratio |
90% |
sRGB |
100% coverage |
| Adobe RGB |
82% coverage |
DCI-P3 |
90% coverage |
| Rec.2020 |
67% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G133HAN01.1 Electronics Details
| Frame Frequency : |
60Hz |
| Reverse Scan : |
No |
| Power Consumption : |
16.2W (Max.) |
AUO G133HAN01.1 Backlight Details
| Back-light Features : |
Lamp Type |
WLED |
Amount |
- |
Life Time |
50K(Typ.) Hours |
| Replacement |
- |
Lamp Shape |
- |
Position |
Edge light type |
| Interface Features : |
Type |
Connector |
Position |
- |
Lamp Driver |
With LED Driver |
| Interface Detail : |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Configuration |
| HRS |
DF19G-8P-1H(54) |
1.0mm |
8 pins |
1 pcs |
|
| Driver Electrical : |
Voltage Input |
12.0±1.2V |
Current Input |
1.25A (Max.) |
| Consumption |
15W (Max.) |
AUO G133HAN01.1 Interface Details
| Signal Systerm : |
LVDS (2 ch, 8-bit) |
|
Logic Voltage |
- |
|
| Signal Electrical : |
Voltage Input |
3.3V (Typ.) |
|
Current Input |
333.2/363.6mA (Typ./Max.) |
| Consumption |
1.1/1.2W (Typ./Max.) |
| Interface Features : |
Type |
Connector |
Position |
- |
| Connector Detail : |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Configuration |
| HRS |
DF19K-30P-1H(54) |
1.0 mm |
30 pins |
1 pcs |
|
AUO G133HAN01.1 Carton Details
| Package Box : |
Amount |
Size (L×W×H) |
Weight |
| 20 pcs / box |
480×275×450 mm |
10.5 Kgs |
