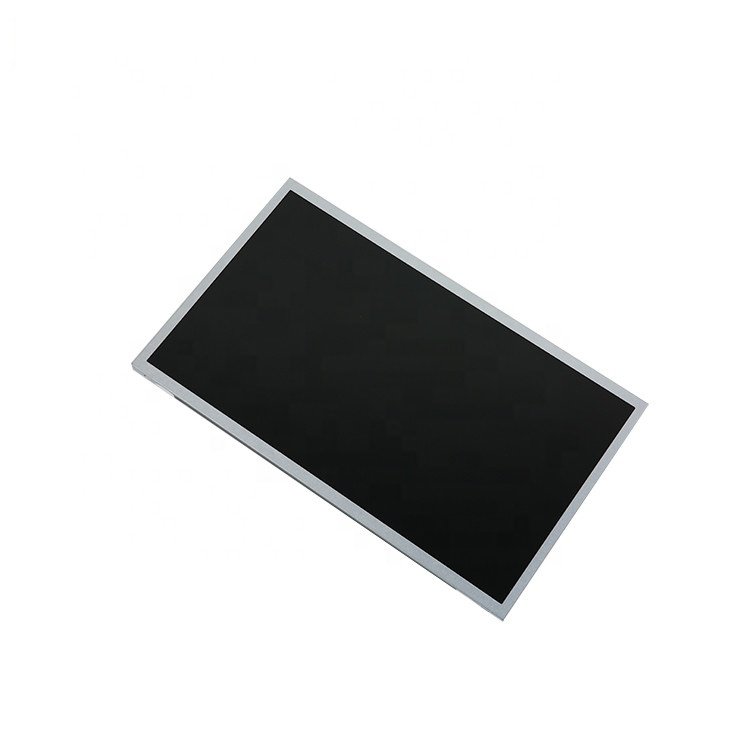

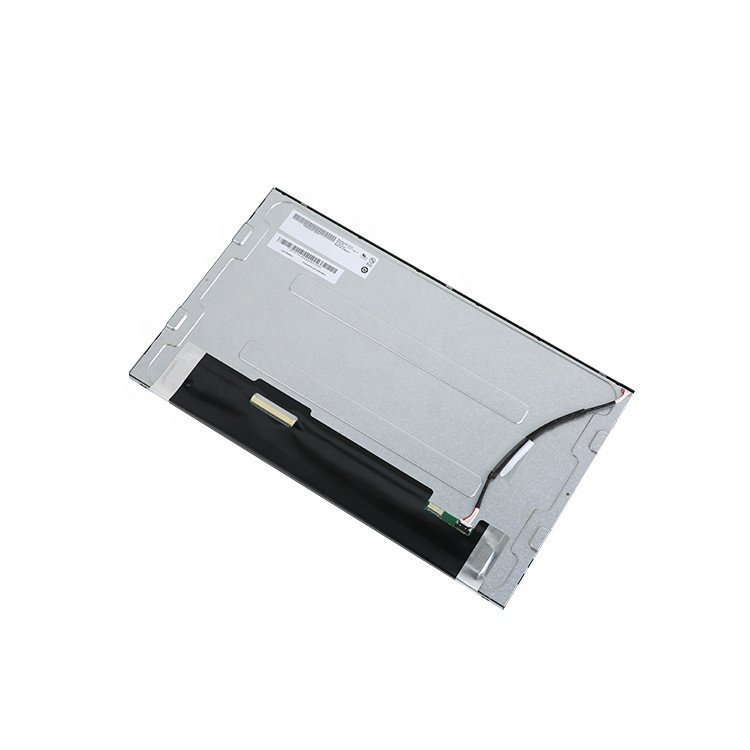

AUO G156HAN05.0 Application Details
| Basic Info : |
Panel Brand |
AUO |
Panel Model |
G156HAN05.0 |
| Diagonal Size |
15.6 inch |
Application |
Industrial |
| Panel Type |
a-Si TFT-LCD , LCM |
|
|
| Reliability : |
Operating Temp. |
-10 ~ 60 °C |
Storage Temp. |
-20 ~ 70 °C |
| RoHS State |
RoHS |
Vibration Rating |
1.5G (14.7 m/s²) |
| Specific Features : |
Srgb, WLED Backlight，Life>=50K hours,With LED Driver |
AUO G133ZAN01.1 Mechanical Details
| Pixel Features : |
Pixel Format |
1920(RGB)×1080, FHD |
Dot Pitch |
0.05975×0.17925 (H×V) |
| Configuration |
RGB Vertical Stripe |
Pixel Pitch |
0.17925×0.17925 (H×V) [141PPI] |
| Mechanical Size : |
Display Area (mm) |
344.16(H) × 193.59(V) |
Outline Dim (mm). |
- |
| Outline Dim. (mm) |
351.84(H) × 208.88(V) |
Outline Depth (mm) |
4.1/6.5 (Typ./Max.) |
| Outline Features : |
Form Factor |
Flat Rectangle |
Orientation |
Landscape type |
| Aspect Ratio |
16:9 (H:V) |
Shape Style |
|
| Holes & Brackets : |
Without |
| Other Features : |
Weight |
580g (Max.) |
Treatment |
Hard coating (3H) |
AUO G133ZAN01.1 Optical Details
| Brightness |
Brightness |
500 cd/m² (Typ.) |
Contrast Ratio |
1000:1 (Typ.) (Transmissive) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Optical Mode |
AHVA, Normally Black, Transmissive |
| Viewing Direction |
Symmetry |
Response Time |
25(Typ.)(Tr+Td) (ms) |
| Color Performance : |
Chromaticity |
Wx:0.313; Wy:0.329 |
Color Numbers |
16.2M (6-bit + FRC) |
| Color Temperature |
6485K |
Uniformity |
1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamut : |
NTSC Ratio |
78% |
sRGB |
100% coverage |
Adobe RGB |
78%
coverage |
DCI-P3 |
80% coverage |
| Rec.2020 |
58% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G133ZAN01.1 Electronics Details
| Frame Frequency : |
60Hz |
| Reverse Scan : |
No |
AUO G133ZAN01.1 Backlight Details
| Back-light Features : |
Lamp Type |
WLED |
Amount |
- |
Life Time |
50K(Min.) (Hours) |
| Replacement |
- |
Lamp Shape |
- |
Position |
Edge light type |
| Interface Features : |
Type |
Included in signal interface |
Position |
- |
Lamp Driver |
With LED Driver |
| Driver Electrical : |
Voltage Input |
12.0±1.2V |
Current Input |
- |
| Consumption |
10.8/12W (Typ./Max.) |
AUO G133ZAN01.1 Interface Details
| Signal Systerm : |
eDP (2 Lanes), eDP1.2 |
|
Logic Voltage |
- |
|
| Signal Electrical : |
Voltage Input |
3.3V (Typ.) |
|
Current Input |
0.22mA (Max.) |
| Consumption |
0.8W (Max.) |
| Interface Features : |
Type |
Connector |
Position |
- |
| Connector Detail : |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Configuration |
| I-PEX |
20765-030E-11A |
0.5mm |
30 pins |
1 pcs |
|
AUO G156HAN05.0 Packing Details
| Package Box : |
Quantity |
Weight |
Box Size |
| 18 pcs / box |
10.0 Kgs
|
485×375×340 mm (L×W×H) |
