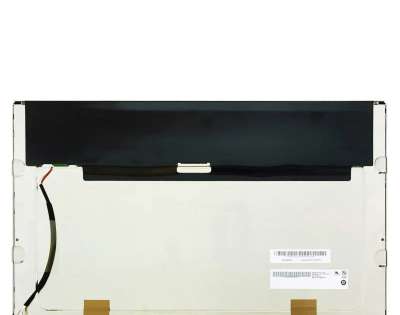

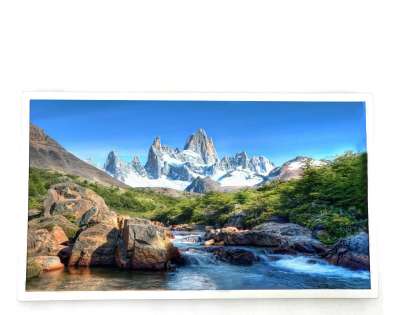

1.AUO G185HAN01.104 Application Features
Basic Information : | Brand | Model | Type | Model Alias |
AUO | G185HAN01.104 | a-Si TFT-LCD , LCM | - | |
Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
RoHS | -30 ~ 80 °C | -30 ~ 80°C | - | |
Designed For : | Industrial，Medical Imaging | |||
Specific Features : | sRGB，Wide Temperature， WLED Backlight，Life≥50K hours，With LED Driver，Upside I/F，6/8 bit，Matte | |||
2. AUO G185HAN01.104 Mechanical Features
Panel Size : | 18.5 inch | |||
Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.071×0.213 mm | 0.213×0.213 mm [119PPI] | |
Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
408.96×230.04 mm | 412.56×233.64 mm | 430.4×254.6 mm | 12.0±0.5 mm | |
Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
Flat Rectangle | 16:9 (W : H) | Landscape type | ||
Other Features : | Panel Cover | Weight | Surface | |
- | 1.20Kgs (Typ.) | Antiglare, Hard coating (3H) | ||
Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
3. AUO G185HAN01.104 Optical Features
Basic Information : | Brightness | Operating Mode | Contrast Ratio |
500 cd/m² (Typ.) | AHVA, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
89/89/89/89 (Typ.)(CR≥10) | Symmetry | 10/10 (Typ.)(Tr/Td) (ms) | |
Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
7502K | 16.7M (8-bit) | X:0.299; Y:0.315 | |
1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
72% | 99% | 75% | |
DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Luminance Variation : | 1.18/1.25 (Typ./Max.)(9 points) | ||
4. AUO G185HAN01.104 Electronics Features
Power Consumption : | 28.15W (Max.) |
Frame Rate : | 60Hz |
Reverse Scan : | No |
5. AUO G185HAN01.104 Interface Features
Signal Electrical : | Current Input | Voltage Input | Consumption | |||
0.89/1.07A (Typ./Max.) | 5.0V (Typ.) | 4.45/5.35W (Typ./Max.) | ||||
Interface Features : | Position | Type | Interface | |||
Upper middle of panel | Connector | LVDS (2 ch, 8-bit) | ||||
Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
JAE | FI-XB30SSRLA-HF16 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
6. AUO G185HAN01.104 Backlight Features
Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
WLED | Edge light type (Bottom side) | 7strings | 8S7P | 50K(Min.) | No | |
WLED Electrical : | Current Input | Voltage Input | Consumption | |||
85mA (Typ.) | 24.0/26.4V (Typ./Max.) | 14.2/15.71W (Typ./Max.) | ||||
Interface Features : | Position | Type | WLED Driver | |||
- | Connector | With LED Driver | ||||
Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
STM | MSB24038P5D | 1 pcs | 1.25 mm | 5 pins | ||
Driver Electrical : | Current Input | Voltage Input | Consumption | |||
1.56/1.9A (Typ./Max.) | 12.0±1.2V | 18.72/22.8W (Typ./Max.) | ||||
7. AUO G185HAN01.104 Packing Features
Package Type | Pcs/Package | Package LWH (mm) | G.W (kgs) |
8 | 520×280×355 | N/A |
