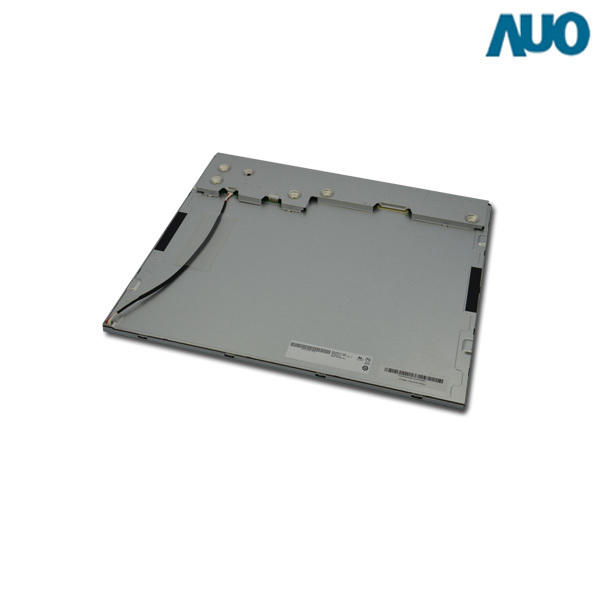

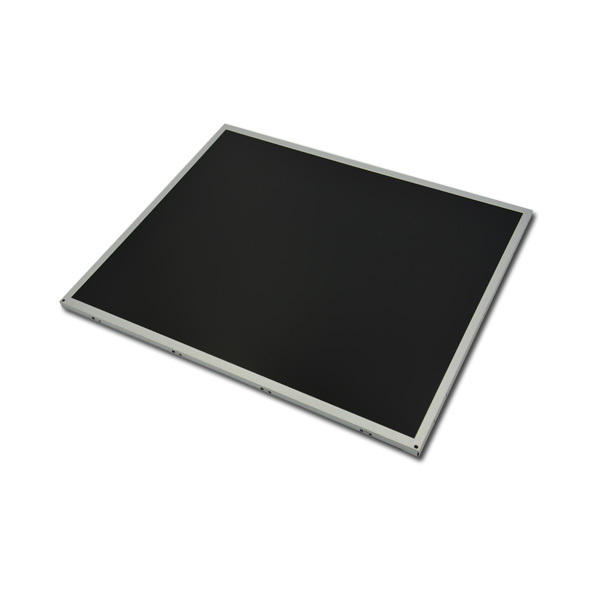

AUO G190ETN01.4 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G190ETN01.4 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | ||
| Panel Size | 19inch | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Color Gamut,DCI-P3,Srgb,Wide Temperature，Life>=50K hours,With LED Driver,WLED Backlight，Matte,Upside I/F | |||
AUO G190ETN01.4 Optical Details
| Basic Information : | Luminance | 450 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 7/3 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 90% | sRGB | 99% coverage |
| Adobe RGB | 80% coverage | DCI-P3 | 90% coverage | |
| Rec.2020 | 66% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G190ETN01.4 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*1024 [SXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.098*0.294 mm | Pixel Pitch(W×H) | 0.294*0.294 mm [86PPI] | |
| Physical Size : | Active Viewing(mm) | 376.32(W)*301.056(H) mm | Outline Dim.(mm) | 396*324 mm (H*V) |
| Bezel Area | 379.72(W)*304.46(H) mm | Outline Depth | 13.38 (Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 5:4(H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.80Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO G190ETN01.4 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 20W (Typ.) |
AUO G190ETN01.4 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 1.0/1.2A (Typ./Max.) | |||||
| Consumption | 5.0/6.0W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | ||||||
| Interface Features : | Type | Connector | Position | Rear | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||
| HRS | DF14H-30P-1.25H(56) | 1.25mm | 30 pins | 1 pcs | LVDS-30P2C8B-200A | ||||
AUO G190ETN01.4 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Bottom side) | ||||||||
| Exchange | - | Lamp Shape | 4 strings | Lamp Life | 50K(Min.) Hours | |||||||||
| Lamp Electrical : | Voltage Input | 38.4±4.8V | Current Input | 100mA (Typ.) | ||||||||||
| Interface Features : | Position | Rear | Physical Type | Connector | ||||||||||
| Backlight Driver : | With LED Driver | |||||||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | ||||||||
| SM08B-GHH(HF) | 8 pins | 1 pcs | ||||||||||||
| Driver Electrical : | Input Current | 1.25/1.73A (Typ./Max.) | Input Voltage | 10.8/12.0/13.4V (Min./Typ./Max.) | ||||||||||
| Consumption | 15/18.7W (Typ./Max.) | |||||||||||||
AUO G190ETN01.4 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 9 pcs / box | 19.0 Kgs (Max.) | 489*293*420 mm (L*W*H) |
