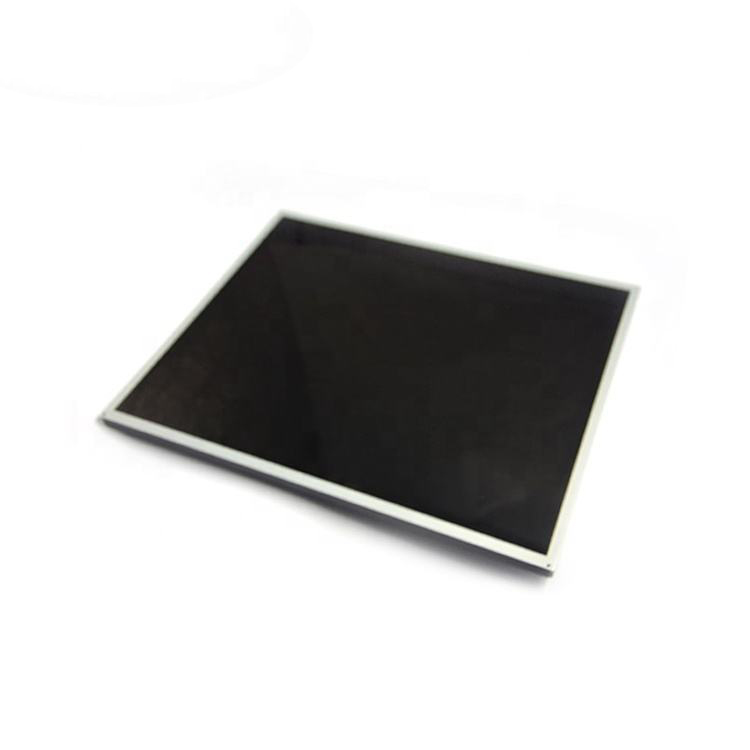

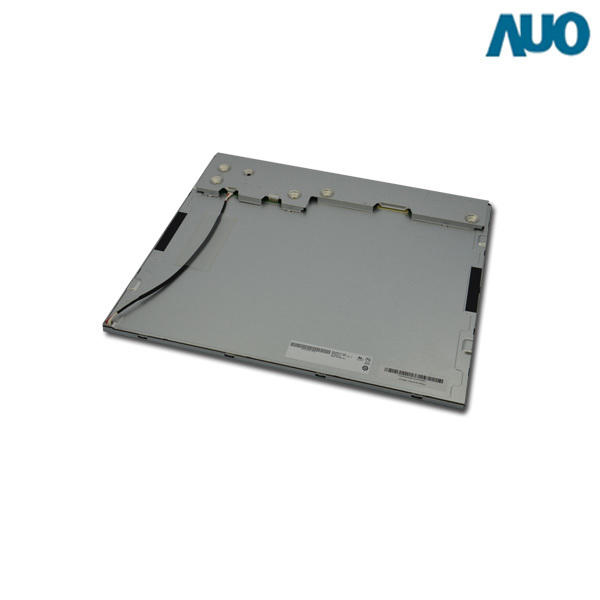

AUO G190ETN01.0 Application Details
| Basic Detail : |
Manufacturer |
AUO |
Model Name |
G190ETN01.0 |
| Panel Type |
a-Si TFT-LCD , LCM |
Model Alias |
|
| Panel Size |
19inch |
Designed For |
Industrial |
| Maximum Ratings : |
OP Temperature |
0 ~ 50 °C |
ST Temperature |
-20 ~ 60 °C |
| RoHS |
RoHS |
Vibration Level |
1.5G (14.7 m/s²) |
| Features : |
WLED Backlight，Matte,Upside I/F |
AUO G190ETN01.0 Optical Details
| Basic Information : |
Luminance |
350cd/m² (Typ.) |
Contrast Ratio |
1000:1 (Typ.) (Transmissive) |
| Good View at |
- |
Response Speed |
3.6/1.4 (Typ.)(Tr/Td) (ms) |
| Viewing Angle |
85/85/80/80 (Typ.)(CR≥10) |
Operating Mode |
TN, Normally White, Transmissive |
| Color Performance : |
Chromaticity |
Wx:0.313; Wy:0.329 |
Support Color |
16.7M (6-bit + Hi-FRC) |
| Color Temperature |
6485K |
White Variation |
1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : |
NTSC Ratio |
72% |
sRGB |
93% coverage |
| Adobe RGB |
72% coverage |
DCI-P3 |
75% coverage |
| Rec.2020 |
54% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G190ETN01.0 Mechanical Details
| Pixel Features : |
Number of Pixel |
1280(RGB)×1024 [SXGA] |
Arrangement |
RGB Vertical Stripe |
| Dot Pitch(W×H) |
0.098×0.294 mm |
Pixel Pitch(W×H) |
0.294×0.294 mm [86PPI] |
| Physical Size : |
Active Viewing(mm) |
376.32(W)×301.056(H) mm |
Outline Dim.(mm) |
396×324 mm (H×V) |
| Bezel Area |
380.32(W)×305.06(H) mm |
Outline Depth |
11.7 (Max.) mm |
| Outline Features : |
Form Style |
Flat Rectangle |
Outline Shape |
|
| Aspect Ratio |
5:4(H:V) |
Orientation |
Landscape type |
| Holes & Brackets : |
Side mounting holes (4-M3) on left, right bezel |
| Other Features : |
Weight |
1.80Kgs (Typ.) |
Surface |
Antiglare, Hard coating (3H) |
AUO G190ETN01.0 Electronics Details
| Refresh Rate : |
60Hz |
| Reverse Scan : |
No |
| Power Consumption : |
14.5W (Typ.) |
AUO G190ETN01.0 Interface Detail
| Signal Electrical : |
Voltage Supply |
5.0V (Typ.) |
Current Supply |
0.94/1.1A (Typ./Max.) |
| Consumption |
4.7/5.5W (Typ./Max.) |
Signal Interface |
LVDS (2 ch, 8-bit) |
| Interface Features : |
Type |
Connector |
Position |
Rear |
| Connector Detail : |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Configuration |
| JAE |
FI-XB30SSLA-HF15 |
1.0 mm |
30 pins |
1 pcs |
LVDS-30P2C8B-180A |
AUO G190ETN01.0 Backlight Details
| Lamp Features : |
Lamp Type |
WLED |
Quantity |
12S4P |
Position |
Edge light type (Bottom side) |
| Exchange |
- |
Lamp Shape |
4 strings |
Lamp Life |
30K(Min.) Hours |
| Lamp Electrical : |
Voltage Input |
41.0/43.2V (Typ./Max.) |
Current Input |
60mA (Typ.) |
| Consumption |
9.8W (Typ.) |
| Interface Features : |
Position |
Rear |
Physical Type |
Connector |
| Backlight Driver : |
No |
| Interface Detail : |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Configuration |
| E&T |
3707K-S06N-01R |
1.0 mm |
6 pins |
1 pcs |
BLE-6PINS-CCAACC |
AUO G190ETN01.0 Packing Details
| Package Box : |
Quantity |
Weight |
Box Size |
| 13 pcs / box |
26.69 Kgs (Max.) |
409×367×475mm (L×W×H) |
