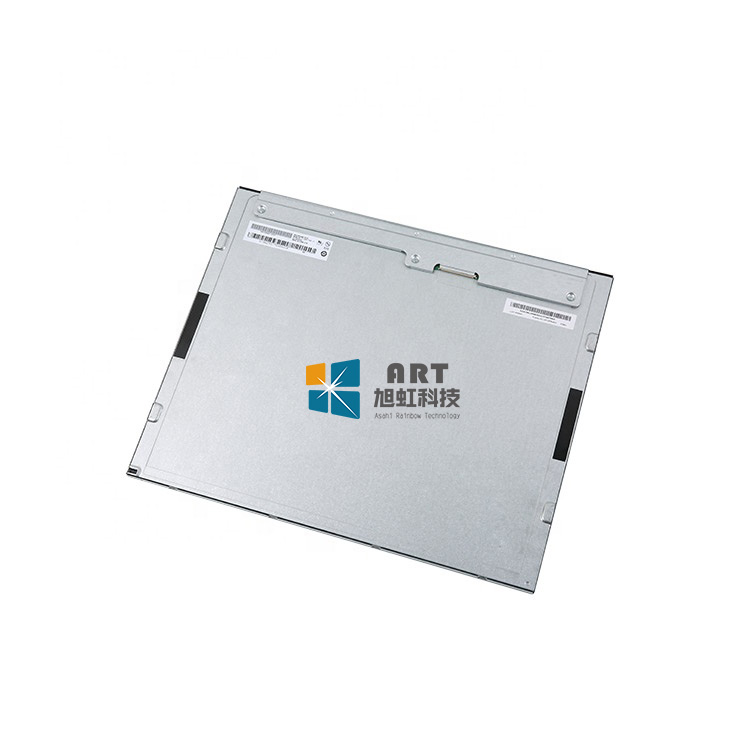

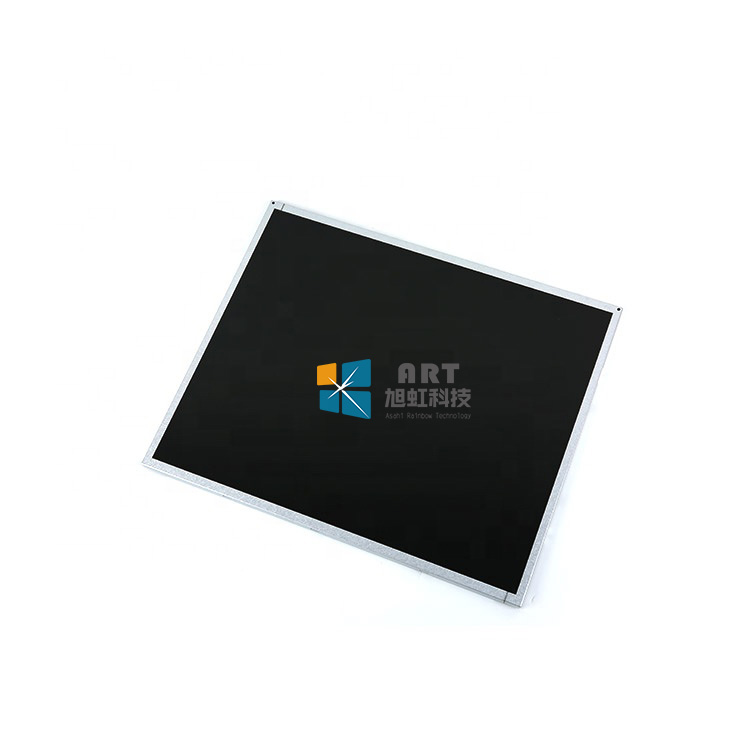

AUO M190ETN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | M190ETN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | ||
| Panel Size | 19inch | Designed For | Desktop Monitor | |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | - 20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | - | |
| Features : | WLED Backlight, Upside I/F,Matte | |||
AUO M190ETN01.0 Optical Details
| Basic Information : | Luminance | 250cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 3.6/1.4 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 74% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO M190ETN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(LCR)×1024, SXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.098×0.294 mm | Pixel Pitch(W×H) | 0.294×0.294 mm [86PPI] | |
| Physical Size : | Active Viewing(mm) | 376.32(W)×301.056(H) mm | Outline Dim.(mm) | 396×324 mm (H×V) |
| Bezel Area | 380.32(W)×305.06(H) mm | Outline Depth | 11.4 (Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 5:4(H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.70Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO M190ETN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption | 9.4W (Typ.) |
AUO M190ETN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.55/0.66A (Typ./Max.) |
|||||
| Consumption | 2.8/3.3W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | ||||||
| Interface Features : | Type |
Connector | Position |
Rear | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||
| P-TWO | 187053-30091 | 1.0mm | 30 pins | 1 pcs | |||||
AUO M190ETN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 11S4P |
Position | Edge light type (Bottom side) | |||
| Exchange | - |
Lamp Shape | 4 strings | Lamp Life | 30K(Min.) Hours | ||||
| Interface Features : | Position | Rear | Type | Connector | |||||
| Lamp Electrical : | Voltage Input | 35.2±2.2V | Current Input | 50/53mA (Typ./Max.) | |||||
| Consumption | 6.6/7.48W (Typ./Max.) | ||||||||
| Backlight Driver : | With LED Driver | ||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||
| E&T | 3707K-S06N-21R | 1.0mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | ||||
AUO M190ETN01.0 Packing Details
| Package Box : |
Amount | Size (L×W×H) | Weight |
| 13 pcs / box | 409×367×475 mm (L×W×H) | 26.83 Kgs |
