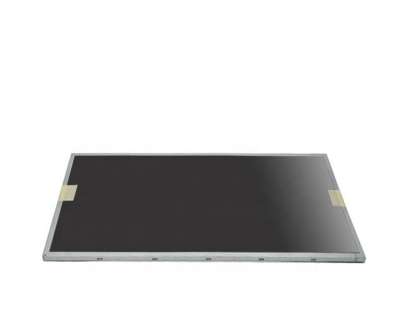

1、AUO G215HAN01.7 Application Details
Basic Detail : | Manufacturer | AUO | Model Name | G215HAN01.7 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 21.5 inch | Designed For | Industrial，Medical Imaging | |
Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
Vibration Rating | 1.5G (14.7 m/s²) | RoHS | RoHS | |
Features : | WLED Backlight， Matte | |||
2、AUO G215HAN01.7 Optical Details
Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 12/10 (Typ.)(Tr/Td) ms | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
3、AUO G215HAN01.7 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.08265×0.24795 mm (H×V) | Pixel Pitch(W×H) | 0.24795×0.24795 mm (H×V) [102PPI] | |
Mechanical Size : | Display Area | 476.064×267.786 mm (H×V) | Bezel Area | - |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style | ||
Other Features : | Weight | - | Surface | Antiglare, Hard coating (3H) |
4、AUO G215HAN01.7 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
5、AUO G215HAN01.7 Backlight Details
Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
Replacement | - | Amount | - | Position | Edge light type | |
Interface Features : | Type | Position | - | Lamp Driver | No |
6、AUO G215HAN01.7 Interface Details
Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |
Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | - |
Consumption | - | |||
Interface Features : | Type | Connector | Position | - |
