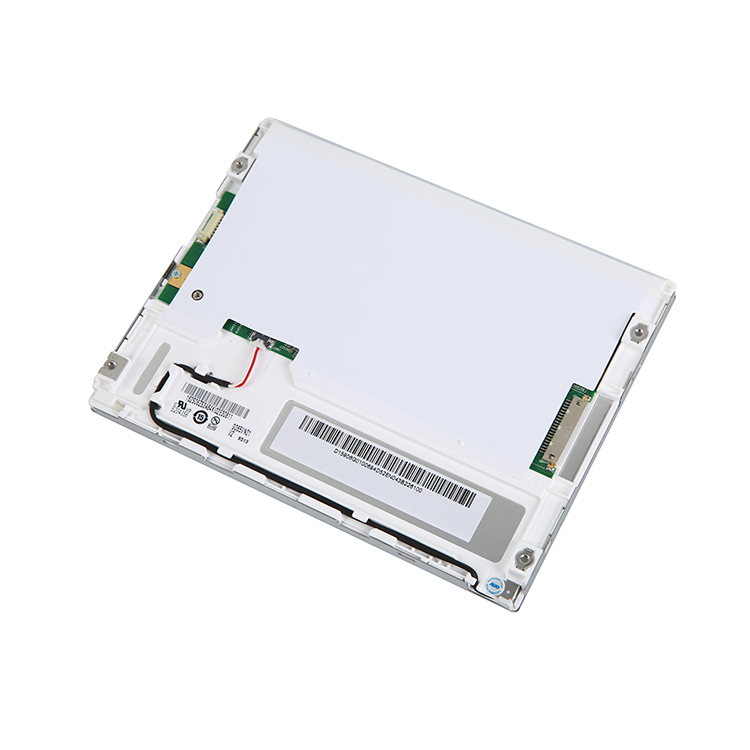

ONE、AUO 6.5inch G065VN01 V2 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G065VN01 V2 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | G065VN01 V.2 | |
| Panel Size | 6.5inch | Designed For | Industrial ，Outdoor High Brightness | |
| Maximum Ratings : | OP Temperature | -30~ 80 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Temperature，Outdoor High Brightness，Lamp Repaceable，6/8bit, Life>=50K hours,With LED Driver,U/D/L/R Reverse，WLED Backlight，Glossy | |||
AUO 6.5inch G065VN01 V2 Optical Details
| Basic Information : | Luminance | 800cd/m2; (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 15/10 (Typ.)(Tr/Td) | |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.25 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 57% | sRGB | 75% coverage |
| Adobe RGB | 59% coverage | DCI-P3 | 60% coverage | |
| Rec.2020 | 43% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
AUO 6.5inch G065VN01 V2 Mechanical Details
| Pixel Features : | Number of Pixel | 640(RGB)*480, VGA | Arrangement | RGB Vertical Stripe | |||
| Dot Pitch(W×H) | 0.069*0.207 mm (H*V) | Pixel Pitch(W*H) | 0.207*0.207 mm (H*V) [122PPI] | ||||
| Physical Size : | Active Viewing(mm) | 132.48*99.36 mm (H*V) | Outline Dim.(mm) | 153*118 mm (H*V) | |||
| Bezel Opening(mm) | 135.9*102.8 mm (H*V) | Overall Depth(mm) | 10.9±0.3 mm | ||||
| Outline Features : | Form Style | Flat Rectangle | Shape Style | ||||
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | ||||
| Mounting : | Side mounting holes (4-M2); Rear mounting holes (4-M2.5) | ||||||
| Other Detail : | Weight | 170g (Typ.) | Surface | Glare (Haze 0%), Hard coating (3H), Antireflection | |||
AUO 6.5inch G065VN01 V2 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Total Consumption : | 3.86W (Typ.) |
AUO 6.5inch G065VN01 V2 Interface Detail
| Signal Electrical : | Input Current | 260/300mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
| Consumption | 0.86W (Typ.) | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
| Logic Voltage : | - | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| STM | MSB24013P20 | 1.0 mm | 20 pins | 1 pcs | LVDS-20P1C8B-100A | |
AUO 6.5inch G065VN01 V2 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Bottom side) | ||||||||||
| Exchange | Replaceable | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | |||||||||||
| Interface Features : | Position | - | Type | Connector | ||||||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | ||||||||||
| STM | MS24016RHD | 1.25 mm | 6 pins | 1 pcs | ||||||||||||
| Backlight Driver : | With LED Driver | |||||||||||||||
| Driver Electrical : | Voltage Supply | 9.0/12.0/20.0V (Min./Typ./Max.) | Current Supply | 0.25A (Typ.) | ||||||||||||
| Consumption | 3.0W (Typ.) | |||||||||||||||
AUO 6.5inch G065VN01 V2 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 80pcs / box | 16.6 Kgs | 425*386*430 mm |
