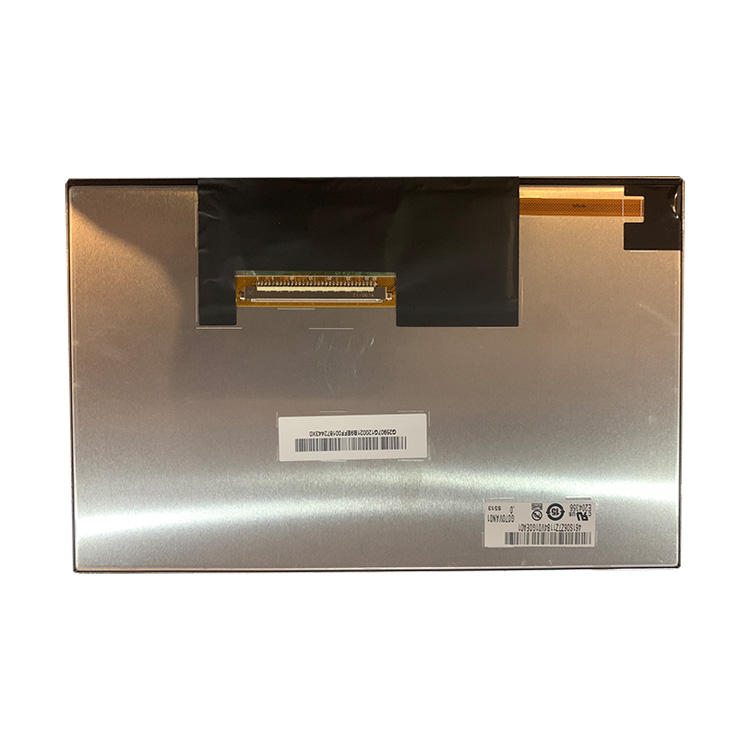

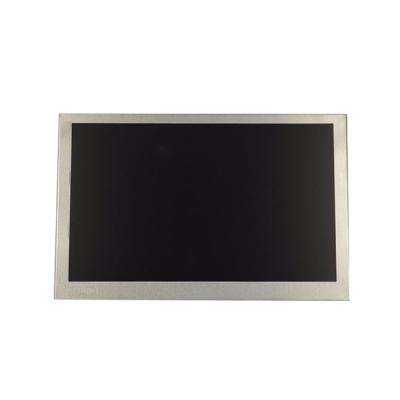

  • AUO 7 inch RGB TFT LCD Screen G070VVN01.2 with 800*480, 600 nits and high contra
  • AUO 7 inch RGB TFT LCD Screen G070VVN01.2 with 800*480, 600 nits and high contra
  • Model:G070VVN01.2
  • Brand:AUO
  • Size:7.0 inch
  • Resolution:800×480
  • Brightness:600 cd/m²
  • Perspective:80/80/80/80 (Typ.)
  • Interface:RGB
  • Operating Temp.: -20 ~ 70 °C
  • Production State:In Production
  • Get a Quote
  • Technical Parameters
  • AUO G070VVN01.2 Application Details

    Basic Detail : Manufacturer AUO Model Name G070VVN01.2
    Panel Type a-Si TFT-LCD , LCM Model Alias
    Panel Size 7.0inch Designed For Industrial
    Maximum Ratings : OP Temperature -20~ 70 °C ST Temperature -30 ~ 80 °C
    RoHS RoHS Vibration Level 1.5G (14.7 m/s²)
    Features : Hight Brightness,WLED Backlight,U/D/L/R Reverse,6/8bit,Matte


    AUO  G070VVN01.2 Optical Details

    Basic Information : Luminance 600cd/m² (Typ.) Contrast Ratio 1500:1 (Typ.) (Transmissive)
    Good View at Symmetry Response Speed 10/25 (Typ.)(Tr/Td)
    Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Operating Mode AMVA3, Normally Black, Transmissive
    Color Performance : Chromaticity Wx:0.311; Wy:0.328 Support Color 262K/16.2M (6-bit / 6-bit + FRC)
    Color Temperature 6601K White Variation 1.25 (Max.)(9 points)
    1931 Color Gamlt : NTSC Ratio 70% sRGB 90% coverage
    Adobe RGB 70% coverage DCI-P3 73% coverage
    Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    AUO  G070VVN01.2 Mechanical Details

    Pixel Features : Number of Pixel 800(RGB)×480, WVGA Arrangement RGB Vertical Stripe
    Dot Pitch(W×H) 0.0635×0.1905 (H×V) Pixel Pitch(W×H) 0.1905×0.1905 (H×V)  [133PPI]
    Physical Size : Active Viewing(mm) 152.4(W)×91.44(H) mm Overall Dim. 164.55(H) × 104.71(V)
    Bezel Opening 154.2(W)×93.2(H) mm Overall Depth(mm) 8.5 (Max.)
    Outline Features : Form Style Flat Rectangle Shape Style
    Aspect Ratio 15:9 (H:V) Orientation Landscape type
    Fixation : Without
    Other Detail : Weight 143g (Typ.) Surface Antiglare, Hard coating (3H)


    AUO  G070VVN01.2 Electronics Details

    Refresh Rate : 60Hz
    Reverse Scan : Yes (U/D, L/R)
    Total Consumption  3.22W (Typ.)
    Time Controller (T-CON) : Embedded T-CON


    AUO  G070VVN01.2 Interface Detail

    Signal Electrical : Input Current 160/197mA (Typ./Max.) Input Voltage 3.3V (Typ.)
    Consumption 528/650mW (Typ./Max.) Signal Interface Parallel RGB (1 ch, 6/8-bit)
    Interface Features : Position -
    Interface Detail : Brand Model Pin Pitch Pins Amount Pin Assignment
    JAE FA5B050HP1 0.5mm 50 pins 1 pcs


    AUO G070VVN01.2 Backlight Details

    Lamp Features : Lamp Type WLED Amount 7S2P Position Edge light type
    Exchange - Lamp Shape Array

    Lamp Life 30K(Min.) (Hours)
    Lamp Electrical : Input Voltage 22.4/25.2V (Typ./Max.) Input Current 120mA (Typ.)
    Consumption 2.69/3.03W (Typ./Max.)
    Interface Features : Position - Type Included in panel signal interface
    Backlight Driver : No


    AUO  G070VVN01.2 Packing Details

    Package Box : Amount Size (L×W×H) Weight
    45pcs / box 608×361×226 mm (L×W×H) 10.0Kgs
