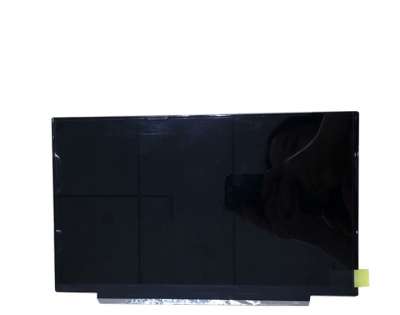

1、AUO G116HAN01.0 Application Details
Basic Info : | Panel Brand | 友达（AUO） | Panel Model | G116HAN01.0 |
Diagonal Size | 11.6" | Application | Industrial | |
Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
RoHS State | RoHS | |||
Specific Features : | WLED Backlight，With LED Driver，Reverse I/F | |||
2、 AUO G116HAN01.0 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080, FHD | Dot Pitch | 0.0445×0.1335 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1335×0.1335 mm (H×V) [190PPI] | |
Mechanical Size : | Display Area | 256.32×144.18 mm (H×V) | Outline Dim. | - |
Outline Dim. | 268×168.5 mm (H×V) | Outline Depth | 3.0 (Max.) mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style | ||
Holes & Brackets : | Without | |||
Other Features : | Weight | 200g (Max.) | Surface | Hard coating (3H) |
3、AUO G116HAN01.0 Optical Details
Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) ms | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6485K | Uniformity | 1.43 (Max.)(13 points) | |
1931 Color Gamut : | NTSC Ratio | 55% | sRGB | 75% coverage |
Adobe RGB | 57% coverage | DCI-P3 | 57% coverage | |
Rec.2020 | 41% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、AUO G116HAN01.0 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
5、AUO G116HAN01.0 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 15K(Min.) Hours |
Replacement | - | Lamp Shape | - | Position | Edge light type | |
Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
Driver Electrical : | Voltage Input | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Input | - | ||
Consumption | 2.2W (Max.) | |||||
6、AUO G116HAN01.0 Interface Details
Signal Systerm : | eDP (2 Lanes), eDP1.2 | Logic Voltage | - | |||
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 303mA (Typ.) | ||
Consumption | 1.0W (Max.) | |||||
Interface Features : | Type | Connector | Position | Right of Board | ||
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
STM | MSAK24025P30M | 0.5 mm | 30 pins | 1 pcs | EDP-30P2L-020A | |
7、AUO G116HAN01.0 Carton Details
Box Type: | Pcs/Box | Package LWH (mm) | Volume (m³) |
48 | 560×270×417 | 12.50 |
