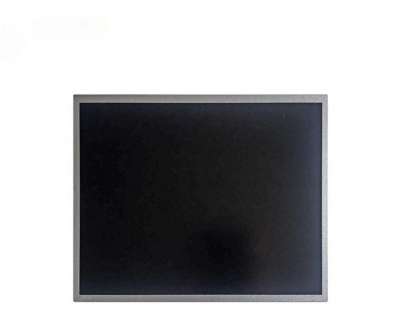

1、AUO G213QAN02.0 Application Details
Basic Detail : | Manufacturer | AUO | Model Name | G213QAN02.0 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 21.3 inch | Designed For | Medical Imaging | |
Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | 0 ~ 60 °C |
Vibration Level | RoHS | RoHS | ||
Features : | Portrait type，Ultra High Brightness，WLED Backlight，Life>=50K hours,10bit,Matte | |||
2、AUO G213QAN02.0 Optical Details
Basic Information : | Luminance | 1000 cd/m² (Typ.) | Contrast Ratio | 1800 : 1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 25 (Typ.)(G to G) (ms) | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
Color Performance : | Chromaticity | - | Color Numbers | 1.07B (10-bit) |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
3、AUO G213QAN02.0 Mechanical Details
Pixel Features : | Number of Pixel | 1536(RGB)×2048 [QXGA] | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.0705×0.2115 mm (H×V) | Pixel Pitch(W×H) | 0.2115×0.2115 mm (H×V) [120PPI] | |
Physical Size : | Display Area | 324.864×433.152 mm (H×V) | Bezel Area | - |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
Aspect Ratio | 3:4 (H:V) | Shape Style | ||
Holes & Brackets : | Rear mounting holes | |||
Other Features : | Weight | - | Surface | Antiglare, Hard coating (3H) |
4、AUO G213QAN02.0 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
5、AUO G213QAN02.0 Backlight Details
Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) |
Replacement | - | Amount | - | Position | Edge light type | |
Interface Features : | Type | Connector | Position | - | Lamp Driver | - |
6、AUO G213QAN02.0 Interface Details
Signal Systerm : | LVDS (4 ch, 10-bit) | Logic Voltage | - | |
Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | - |
Interface Features : | Type | Connector | Position | - |
