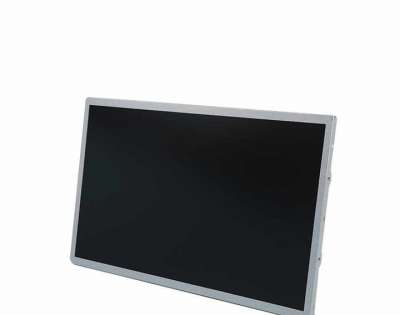

1、AUO G238HAN02.0 Application Details
Basic Detail : | Manufacturer | AUO | Model Name | G238HAN02.0 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 23.8 inch | Designed For | Industrial，Medical Imaging | |
Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
Vibration Rating | 1.5G (14.7 m/s²) | RoHS | RoHS | |
Features : | 3-side boderless，WLED Backlight，Life≥50K hours，Reverse I/F, Matte | |||
2、AUO G238HAN02.0 Optical Details
Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.285; Wy:0.302 | Display Colors | 16.7M (8-bit) |
Color Temperature | 8932K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points | |
1931 Color Gamut : | NTSC Ratio | 68% | sRGB | 95% coverage |
Adobe RGB | 71% coverage | DCI-P3 | 70% coverage | |
Rec.2020 | 51% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、AUO G238HAN02.0 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
Dot Pitch (mm) | 0.0915×0.2745 (H×V) | Pixel Pitch (mm) | 0.2745×0.2745 (H×V) [92PPI] | |
Mechanical Size : | Active Area(mm) | 527.04(H) × 296.46(V) | Bezel Area(mm) | - |
Outline Dim.(mm) | 534.74(H) × 313.66(V) | Depth(mm) | 8.6/13.8 (Typ./Max.) | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style | 3-side borderless | |
Mounting : | Rear mounting holes (15-M3) | |||
Other Features : | Weight | 2.20Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
4、AUO G238HAN02.0 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 17.0W (Typ.) |
5、AUO G238HAN02.0 Backlight Details
Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) | |||||
Replacement | - | Amount | - | Position | Edge light type (Bottom side) | ||||||
Lamp Electrical : | Voltage Supply | 62/68V (Typ./Max.) | Current Supply | 50mA (Typ.) | |||||||
Consumption | 12.4/13.6W (Typ./Max.) | ||||||||||
Interface Features : | Position | Down left corner | Type | Connector | |||||||
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | |||||
CviLux | CI1406M1VL0-NH | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | ||||||
Backlight Driver : | No | ||||||||||
6、AUO G238HAN02.0 Interface Details
Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.92/1.1A (Typ./Max.) | |||||
Consumption | 4.6/5.5W (Typ./Max.) | ||||||||
Signal Type : | LVDS (2 ch, 8-bit) | Logic Voltage | - | ||||||
Interface Features : | Position | Down right of panel | Type | Connector | |||||
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | |||
STM | MSBKT2407P30HB | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A | ||||
7、AUO G238HAN02.0 Packing Details
Package Box : | Quantity | Weight | Box Size |
7 pcs / box | 25.0 Kgs | 610×270×430 mm (L×W×H) |
