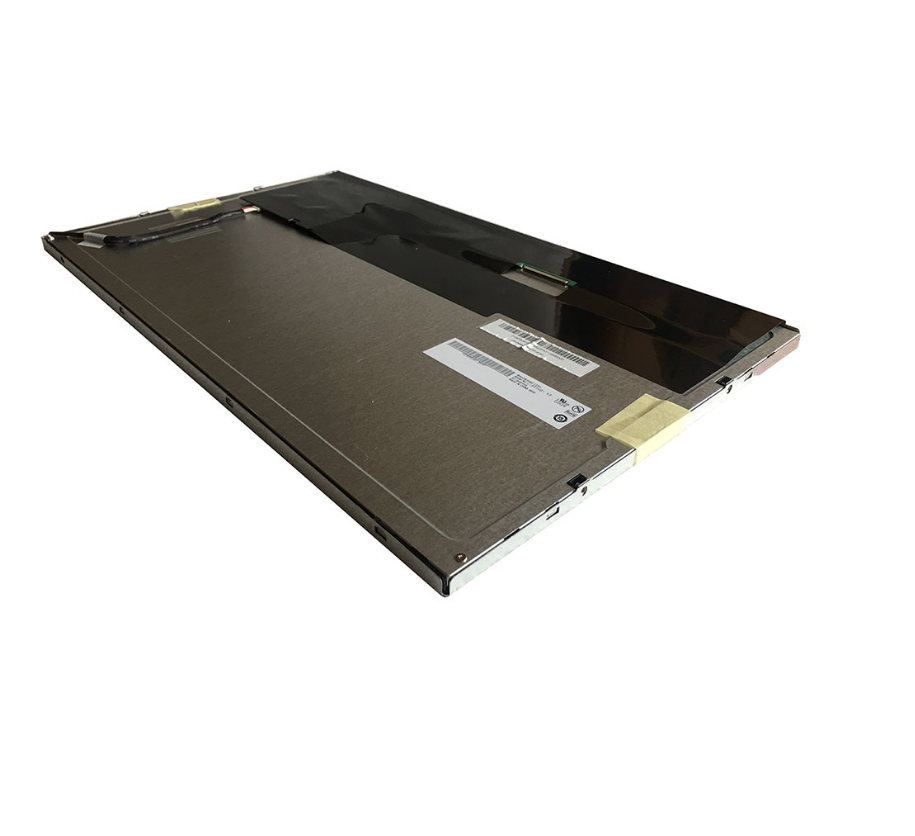

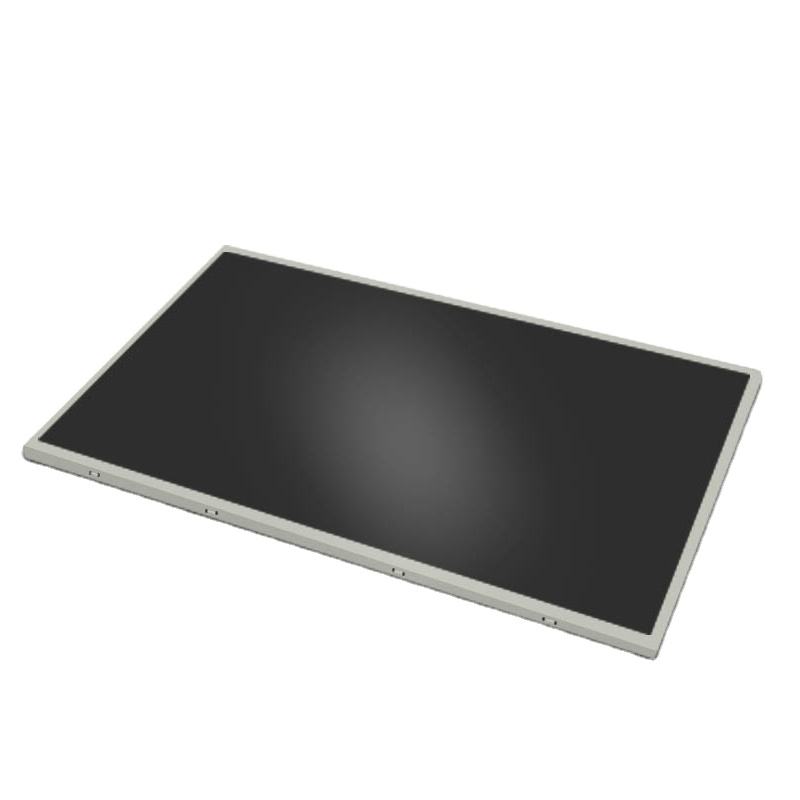

AUO G238HAN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G238HAN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 23.8” | Designed For | Industrial，Medical Imaging | |
| Maximum Ratings : | OP Temperature | 0 ~~ 50 °C | ST Temperature | -20 ~~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | WLED Backlight,Reverse I/F, Matte | |||
AUO G238HAN01.0 Optical Details
| Basic Information : | Luminance | 250cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) ms | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 75% | sRGB | 97% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 77% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G238HAN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.0915×0.2745 mm | Pixel Pitch(mm) | 0.2745×0.2745 mm [92PPI] | |
| Physical Size : | Active Viewing(mm) | 527.04(W)×296.46(H) | Outline Dim.(mm) | 543(W)×317.4(H) |
| Bezel Area (mm) | 530.2(W)×299.6(H) | Outline Depth(mm) | 8.4/11.65 (Typ./.Max.) mm |
|
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 2.28±0.08Kgs | Surface | Antiglare, Hard coating (3H) |
AUO G238HAN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption: | 18.4W (Typ.) |
AUO G238HAN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.64/0.76mA (Typ./Max.) |
||||
| Consumption | 3.2/3.8W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||||
| Interface Features : | Position | Rear | Type | Connector | ||||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration | ||
| STM | MSBKT2407P30HB | 1 pcs | 30pins | 1.0mm | LVDS-30P2C8B-160A | |||
AUO G238HAN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 17S4P | Position | Edge light type (Bottom side) | |||
| Exchange | - |
Lamp Shape | 4 strings | Lamp Life | 30K(Min.) (Hours) | ||||
Lamp Electrical : |
Input Voltage | 54.4±6.8V | Input Current | 70/77mA (Typ./Max.) | |||||
| Consumption | 15.2/17.1W (Typ./.Max.) | ||||||||
| Interface Features : | Position | Rear | Physical Type | Connector |
|||||
| Backlight Driver : | No | ||||||||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration | |||
E&T |
3707K-S06N-21R | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | ||||
AUO G238HAN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 7pcs / box | 12Kgs | 610×270×430 mm (L×W×H) |
