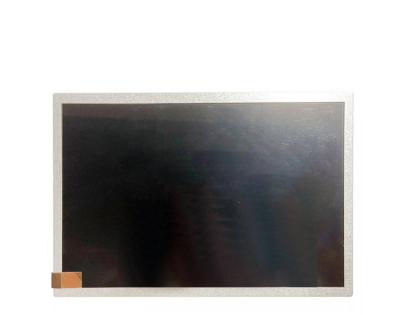

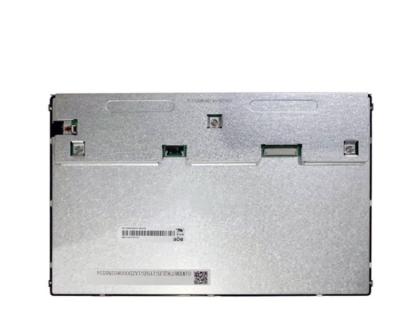

BOE EV101WXM-N80 Application Details
| Basic Detail : | Panel Brand | BOE | Model Name | EV101WXM-N80 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 10.1” | Designed For | Medical Imaging | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight | |||
BOE EV101WXM-N80 Optical Details
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 900:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.54/1.67 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 48% | sRGB | 68% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 50% coverage | |
| Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | No | Transmissivity | 5.4% (Typ.) |
BOE EV101WXM-N80 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*800 [WXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch | 0.0565*0.1695 mm (H*V) | Pixel Pitch (W*H) | 0.1695*0.1695 mm [149PPI] | |
| Physical Size : | Active Viewing(mm) | 216.96(W)*135.6(H) mm | Bezel Area (mm) | 219.4(W)*138.0(H) mm |
| Outline Dim. (mm) | 233.2(W)*152.9(H) mm | Outline Depth | 6.7/10.4 (Typ./Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4 pcs) on left, right bezel | |||
| Other Features : | Weight | 505g (Typ.) | Surface | - |
BOE EV101WXM-N80 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
BOE EV101WXM-N80 Interface Details
| Signal Systerm : | LVDS (1 ch, 8-bit) | Consumption | 0.58/0.7/0.83W (Min./Typ./Max.) | ||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 250mA (Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||
| HRS | DF19G-20P-1H(56) | 1.0mm | 20pins | 1 pcs | |||||
BOE EV101WXM-N80 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | |||||
| Exchange | - | Lamp Shape | - | Lamp Life | 30K(Min.) (Hours) | ||||||
| Lamp Electrical : | Voltage Supply | 12±0.5V | Current Supply | - | |||||||
| Consumption | 2.3W (Typ.) | ||||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||
| Lamp Driver | With LED Driver | ||||||||||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment | |||||
| 1 pcs | 6 pins | ||||||||||
BOE EV101WXM-N80 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 25 pcs / box | - | 375*280*290 mm |
