1、BOE EV101WUM-N20 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | EV101WUM-N20 |
Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
Panel Size | 21.3 inch | Designed For | Medical Imaging | |
Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 85 °C |
RoHS | RoHS | Vibration Level | ||
Features : | High Brightness，WLED Backlight，Reverse I/F | |||
2、BOE EV101WUM-N20 Optical Details
Basic Detail : | Luminance | 600 cd/m² (Typ.) | Contrast Ratio | 900:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) ms | |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.285; Wy:0.327 | Support Color | 16.7M (8-bit) |
Color Temperature | 8210K | White Variation | - | |
1931 Color Gamut : | NTSC Ratio | 75% | sRGB | 95% coverage |
Adobe RGB | 74% coverage | DCI-P3 | 77% coverage | |
Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、BOE EV101WUM-N20 Mechanical Details

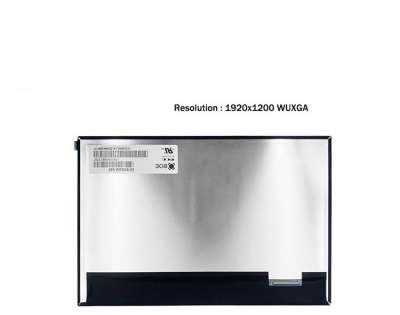

Pixel Features : | Number of Pixel | 1920(RGB)×1200, WUXGA | Arrangement | RGB Vertical Stripe |
Dot Pitch | 0.03764×0.11292 mm | Pixel Pitch(W×H) | 0.11292×0.11292 mm [224PPI] | |
Physical Size : | Active Viewing (mm) | 216.806(W)×135.504(H) mm | Overall Dim. | 228.5(W)×149.3(H) mm |
Bezel Opening | - | Depth(mm) | 4.55 (Typ.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 16:10 | Shape Style | - | |
Fixation : | Without | |||
4、BOE EV101WUM-N20 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
5、BOE EV101WUM-N20 Interface Detail
Signal Electrical : | Input Current | 300/360mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
Consumption | 1.0/1.2W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
Interface Features : | Position | Down right of panel | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
HRS | FH34SRJ-45S-0.5SH(50) | 0.5mm | 45 pins | 1 pcs | ||
6、BOE EV101WUM-N20 Backlight Details
Lamp Features : | Lamp Type | WLED | Amount | - | Position | Edge light type |
Exchange | - | Lamp Shape | - | Lamp Life | ||
Lamp Electrical : | Input Current | Input Voltage | 17/21/23V (Min./Typ./Max.) | |||
Interface Features : | Position | - | Type | Included in signal interface | ||
Lamp Driver | No | |||||
7、BOE EV101WUM-N20 Carton Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
50 | 564×413×290 | N/A |
