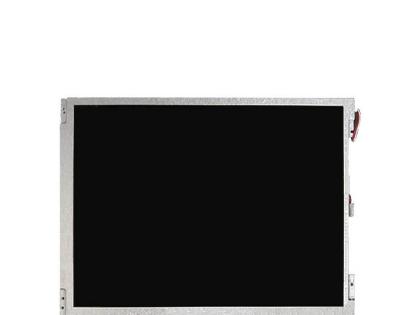

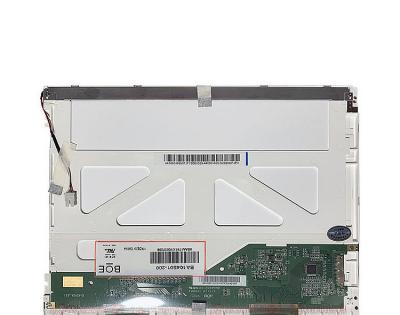

BOE BA104S01-300 Application Details
| Basic Detail : | Panel Brand | BOE | Model Name | BA104S01-300 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 10.4” | Designed For | Industrial，Medical Imaging | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight，With LED Driver, 6/8bit | |||
BOE BA104S01-300 Optical Details
| Basic Information : | Luminance | 350 cd/m²(Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.284; Wy:0.320 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 8455K | White Variation | 1.25/1.43 (Typ./max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 57% | sRGB | 80% coverage |
| Adobe RGB | 60% coverage | DCI-P3 | 60% coverage | |
| Rec.2020 | 43% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE BA104S01-300 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*600 [SVGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch | 0.088*0.264 mm (H*V) | Pixel Pitch (W*H) | 0.264*0.264 mm (H*V) [96PPI] | |
| Physical Size : | Active Viewing(mm) | 211.2*158.4 mm (H*V) | Bezel Area (mm) | 215.0*162.0 mm (H*V) |
| Outline Dim. (mm) | 236*176.9 mm (H*V) | Outline Depth | 5.6±0.3 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel | |||
| Other Features : | Weight | 300g (Typ.) | Surface | Clear |
BOE BA104S01-300 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 3.366W (Typ.) |
BOE BA104S01-300 Interface Details
| Signal Systerm : | LVDS (1 ch,6/ 8-bit) | |||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 150±30mA | ||||
| Consumption | 0.4/0.495/0.59W (Min./Typ./Max.) | |||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| STM | MSB24013P20 | 1.0mm | 20pins | 1 pcs | ||||
BOE BA104S01-300 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 6S4P | Position | Edge light type (Top side) | ||||||||
| Exchange | - | Lamp Shape | Array | Lamp Life | 30K(Typ.) (Hours) | |||||||||
| Lamp Electrical : | Voltage Supply | 19.2/19.8V (Typ./Max.) | Current Supply | 25mA (Typ.) | ||||||||||
| Consumption | 1.92/1.98W (Typ./Max.) | |||||||||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||||||||
| Lamp Driver | With LED Driver | |||||||||||||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment | ||||||||
| STM | MSB24038P5 | 1 pcs | 1.25 mm | 5 pins | ||||||||||
| Driver Electrical : | Voltage Input | 12.0±0.5V | Current Input | 120mA (Typ.) | ||||||||||
| Consumption | 1.98W (Max.) | |||||||||||||
BOE BA104S01-300 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 28 pcs / box | - | 500*400*300 mm |
