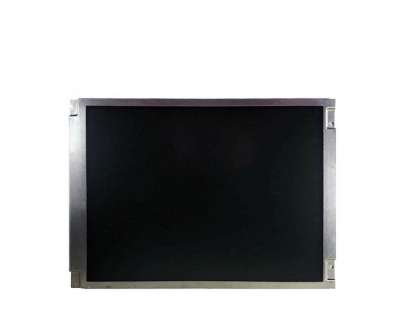

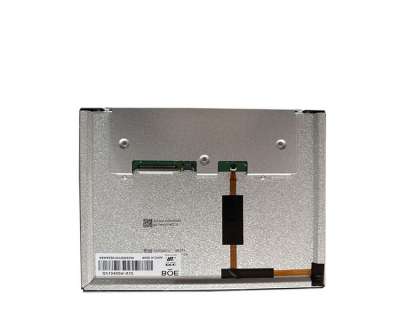

1、BOE GV104X0M-N10 Application Details
Basic Info : | Panel Brand | BOE | Panel Model | GV104X0M-N10 |
Diagonal Size | 10.4” | Application | Industrial | |
Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
RoHS State | RoHS | Vibration Level | ||
Specific Features : | WLED Backlight | |||
2、BOE GV104X0M-N10 Mechanical Details
Pixel Features : | Pixel Format | 1024(RGB)×768, XGA | Dot Pitch | 0.0685×0.2055 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2055×0.2055 mm (H×V) [123PPI] | |
Mechanical Size : | Display Area (mm) | 210.432×157.824 mm (H×V) | Bezel Opening | - |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 4:3 (H:V) | Shape Style |
3、BOE GV104X0M-N10 Optical Details
Basic Information : | Brightness | - | Contrast Ratio | 1100:1 (Typ.) (Transmissive) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | ADS, Normally Black, Transmissive | |
Viewing Direction | Symmetry | Response Time | 30 (Typ.)(Tr+Td) ms | |
Color Performance : | Chromaticity | - | Color Numbers | 16.7M (8-bit) |
1931 Color Gamut : | NTSC Ratio | 69% | sRGB | 89% coverage |
Adobe RGB | 71% coverage | DCI-P3 | 71% coverage | |
Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、BOE GV104X0M-N10 Electronics Details
D-IC Detail : | COG Suggest HX8282A + HX8696E*2 |
5、BOE GV104X0M-N10 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | - |
Replacement | - | Lamp Shape | - | Position | Edge light type |
