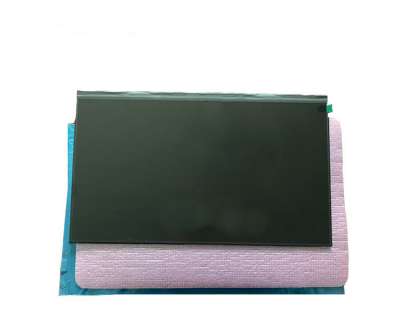

1、BOE EV116FHM-N10 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | EV116FHM-N10 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 11.6 inch | Designed For | Industrial | |
Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
Features : | WLED Backlight，With LED Driver，Matte | |||
2、BOE EV116FHM-N10 Optical Details
Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) ms | |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | - | Support Color | 16.7M (8-bit) |
3、BOE EV116FHM-N10 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.0445×0.1335 mm | Pixel Pitch(W×H) | 0.1335×0.1335 mm [190PPI] | |
Physical Size : | Active Viewing | 256.32(W)×144.18(H) mm | Overall Dim. | 260.32(W)×174.58(H) mm |
Bezel Opening | - | Overall Depth | 2.25/4.5 (Typ./Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 16:9 | Shape Style | ||
Fixation : | Without | |||
Other Detail : | Mass | TBD | Surface | Antiglare (Haze 25%), Hard coating (3H) |
4、BOE EV116FHM-N10 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
5、BOE EV116FHM-N10 Interface Details
Signal Electrical : | Input Current | - | Input Voltage | 3.3V (Typ.) | ||||||||||
Consumption | - | Signal Interface | eDP (2 Lanes) | |||||||||||
Interface Features : | Position | - | Physical Type | Connector | ||||||||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||||||||
S050-L30B-C10 | 30 pins | 1 pcs | ||||||||||||
6、BOE EV116FHM-N10 Lightting Details
Lamp Features : | Lamp Type | WLED | Amount | 8S5P | Position | Edge light type |
Exchange | - | Lamp Shape | 5 strings | Lamp Life | 30K(Min.) (Hours) | |
Lamp Electrical : | Input Voltage | 12±1.0V | Input Current | 100mA (Typ.) | ||
Interface Features : | Position | - | Physical Type | Included in signal interface | ||
Backlight Driver : | With LED Driver | |||||
Driver Electrical : | Input Voltage | 5/12/21V (Min./Typ./Max.) | Input Current | - | ||
