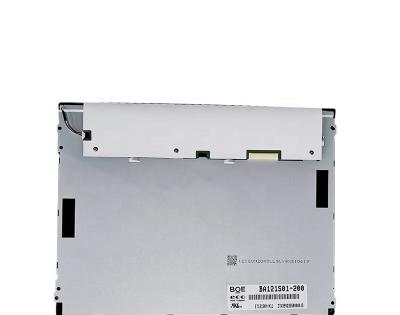

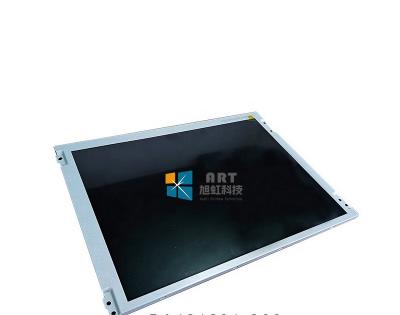

BOE BA121S01-200 Application Details
| Basic Detail : | Panel Brand | BOE | Model Name | BA121S01-200 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 12.1” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight，With LED Driver,Upside I/F, 180°Reverse，6/8bit | |||
BOE BA121S01-200 Optical Details
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.7M (6-bit / 6-bit + FRC) |
Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 55% | sRGB | 77% coverage |
| Adobe RGB | 57% coverage | DCI-P3 | 57% coverage | |
| Rec.2020 | 41% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE BA121S01-200 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*600 [SVGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch | 0.1025*0.3075 mm (H*V) | Pixel Pitch (W*H) | 0.3075*0.3075 mm (H*V) [82PPI] | |
| Physical Size : | Active Viewing(mm) | 246*184.5 mm (H*V) | Bezel Area (mm) | 249.05(W)*188.30(H) mm |
| Outline Dim. (mm) | 279*209 mm (H*V) | Outline Depth | 5.73/9.3 (Typ./Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Face mounting holes (6-Φ3.4) on left, right bezel | |||
| Other Features : | Weight | 500g (Max.) | Surface | Clear |
BOE BA121S01-200 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Total Consumption : | TBD |
BOE BA121S01-200 Interface Details
| Signal Systerm : | LVDS (1 ch,6/ 8-bit) | |||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 340/390mA (Typ./Max.) | ||||
| Consumption | 0.4/0.45W (Typ./Max.) | |||||||
| Interface Features : | Position | Rear | Physical Type | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| STM | MSB240420E | 1.25mm | 20pins | 1 pcs | LVDS-20P1C8B-080B | |||
BOE BA121S01-200 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | ||||||||
| Exchange | - | Lamp Shape | - | Lamp Life | 30K(Min.) (Hours) | |||||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||||||||
| Lamp Driver | With LED Driver | |||||||||||||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment | ||||||||
| STM | MSB24038P5 | 1 pcs | 1.25 mm | 5 pins | ||||||||||
| Driver Electrical : | Voltage Input | 12.0±0.5V | Current Input | - | ||||||||||
BOE BA121S01-200 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 8 pcs / box | - | 375*280*290 mm |
