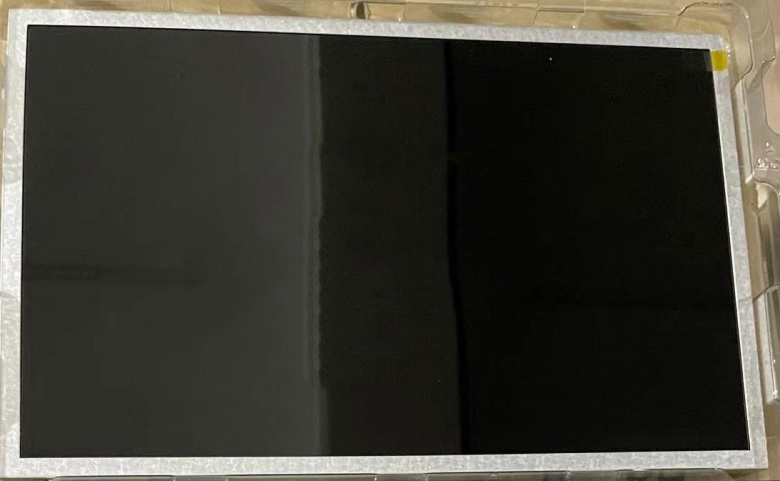

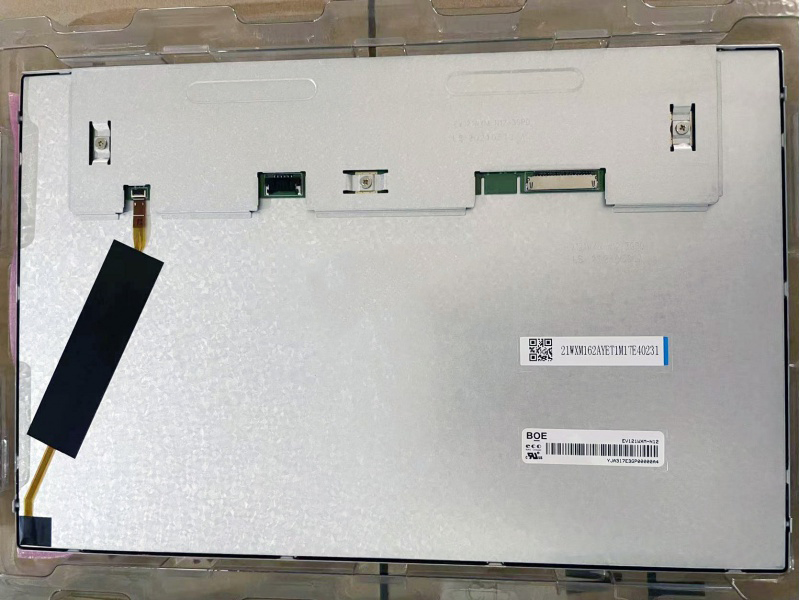

1、BOE EV121WXM-N12 Application Details
| Basic Information : | Brand | BOE | Model | EV121WXM-N12 |
| Type | LCM a-Si TFT-LCD | Used For | Medical Imaging | |
| Screen Size | 12.1" | |||
| Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~ 70 °C |
| RoHS | RoHS | |||
| Typical Features : | Srgb,WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F,6/8 bit,Matte | |||
2、BOE EV121WXM-N12 Mechanical Details
| Pixel Features : | Resolution | 1280(RGB)*800, WXGA | Dot Pitch(mm) | 0.068*0.204 (H*V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.204*0.204 (H*V) [124PPI] | |
| Mechanical Size : | Active Area(mm) | 261.12(H) *163.2(V) | Bezel Area(mm) | 264.12(H) *166.2(V) |
| Outline Dim.(mm) | 277.7(H) *180.6(V) | Depth(mm) | 9.2 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Spec : | Weight | TBD | Treatment | Antiglare (Haze 25%) |
3、BOE EV121WXM-N12 Optical Details
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | ADS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 30 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 77% | sRGB | 100% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 80% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、BOE EV121WXM-N12 Electronics Details
| Frame Rate : | 60Hz |
| Reverse Scan | No |
| Power Consumption : | 8.11W (Max.) |
5、BOE EV121WXM-N12 Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 150/180/200mA (Min./Typ./Max.) | ||
| Consumption | 0.5/0.59/0.66W (Min./Typ./Max.) | |||||
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Upper right of panel | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF19G-20P-1H | 1 pcs | 20 pins | 1.0 mm | ||
6、BOE EV121WXM-N12 Backlight Details
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type (Bottom side) |
| Replacement | - | Quantity | 12S4P | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 38.4/39.6V (Typ./Max.) | Current Supply | 160mA (Typ.) | ||
| Consumption | 6.14/6.34W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MSA24038P6 | 1 pcs | 6 pins | 1.25 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12±1.2V | Current Supply | 620mA (Max.) | ||
| Consumption | 7.45W (Max.) | |||||
7 、BOE EV121WXM-N12 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 15 pcs / box | - | 375*280*290 mm (L*W*H) |
