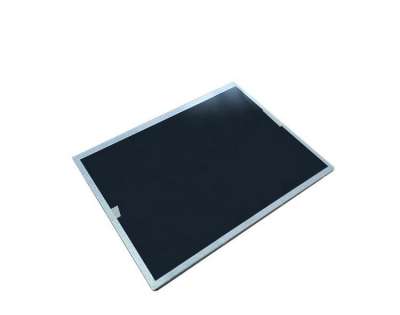

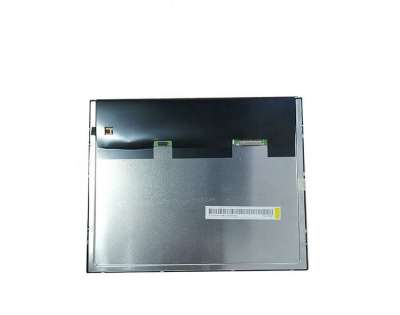

1、BOE EV121X0M-N10 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | EV121X0M-N10 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 12.1inch | Designed For | Industrial，Medical Imaging | |
Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
Features : | WLED Backlight，Life≥50K hours，With LED Driver，Upside I/F,U/D,L/R Reverse | |||
2、BOE EV121X0M-N10 Optical Details
Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.308; Wy:0.327 | Support Color | 16.7M (8-bit) |
Color Temperature | 6778K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 95% coverage |
Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、BOE EV121X0M-N10 Mechanical Details
Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.080×0.240 mm (H×V) | Pixel Pitch(W×H) | 0.240×0.240 mm (H×V) [105PPI] | |
Physical Size : | Active Viewing | 245.76×184.32 mm (H×V) | Bezel Area | 249×187.5 mm (H×V) |
Outline Dim. | 260.5×204 mm (H×V) | Outline Depth | 6.7/9.2 (Typ./Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 4:3 | Shape Style | ||
Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
Other Detail : | Mass | 520g (Max.) | Surface | - |
4、BOE EV121X0M-N10 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | Yes (U/D, L/R) |
5、BOE EV121X0M-N10 Interface Details
Signal Electrical : | Input Current | 0.7A (Typ.) | Input Voltage | 3.3V (Typ.) | ||||||||||
Consumption | 2.31/2.5W (Typ./Max.) | Signal Interface | LVDS (1 ch, 8-bit) | |||||||||||
Interface Features : | Position | Upper right of panel | Physical Type | Connector | ||||||||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||||||||
PM.CON.13076B2001 | 20 pins | 1 pcs | ||||||||||||
6、BOE EV121X0M-N10 Lightting Details
Lamp Features : | Lamp Type | WLED | Amount | - | Position | Edge light type | ||||
Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | |||||
Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver | ||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | ||||
ACES | 91208-01001-H01 | 1.0 mm | 10 pins | 1 pcs | ||||||
Backlight Driver : | With LED Driver | |||||||||
Driver Electrical : | Input Voltage | 12.0V (Typ.) | Current Input | 800mA (Typ.) | ||||||
Consumption | 9.6W (Typ.) | |||||||||
7、BOE EV121X0M-N10 Carton Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
3 | N/A | N/A |
