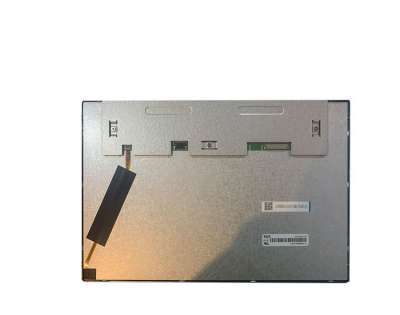

1、BOE GV121WXM-N80 Application Details
Basic Info : | Panel Brand | BOE | Panel Model | GV121WXM-N80 |
Diagonal Size | 12.1” | Application | Industrial | |
Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 75 °C |
RoHS State | RoHS | Vibration Level | ||
Specific Features : | WLED Backlight，With LED Driver | |||
2、BOE GV121WXM-N80 Mechanical Details
Pixel Features : | Pixel Format | 1280(RGB)×800, WXGA | Dot Pitch (W×H) | 0.0684×0.2052 mm |
Configuration | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.2052×0.2052 mm [123PPI] | |
Physical Size : | Active Viewing | 262.565(W)×164.16(H) mm | Overall Dim. | 278(W)×184(H) mm |
Bezel Opening | 264.66(W)×166.66(H) mm | Overall Depth | 6.76/9.91 (Typ./Max.) mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:10 | Shape Style | ||
Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
Other Detail : | Mass | 535±27g | Surface | - |
3、BOE GV121WXM-N80 Optical Details
Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | ADS, Normally Black, Transmissive | |
Viewing Direction | Symmetry | Response Time | 30 (Typ.)(Tr+Td), 45 (Typ.)(G to G) ms | |
Color Performance : | Chromaticity | Wx:0.303; Wy:0.333 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6992K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 52% | sRGB | 70% coverage |
Adobe RGB | 54% coverage | DCI-P3 | 54% coverage | |
Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Dispaly Performance : | Outdoor Visibility | No | Transmissivity | 6.0% (Typ.) |
4、BOE GV121WXM-N80 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 5.9/6.6W (Typ./Max.) |
5、BOE GV121WXM-N80 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | - |
Replacement | - | Lamp Shape | - | Position | Edge light type | |
Interface Features : | Position | - | Type | Included in signal interface | ||
Backlight Driver : | With LED Driver | |||||
Driver Electrical : | Input Voltage | 12V (Typ.) | Input Current | - | ||
6、BOE GV121WXM-N80 Interface Detail
Signal Electrical : | Input Current | 350/450mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
Consumption | 0.8/1.0W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
Interface Features : | Position | - | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
LS100-L30B-C23 | 30 pins | 1 pcs | ||||
7、BOE GV121WXM-N80 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
18 | 538×438×239 | N/A |
