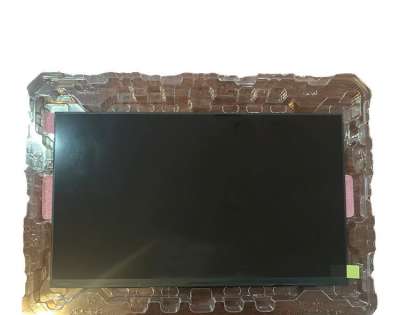

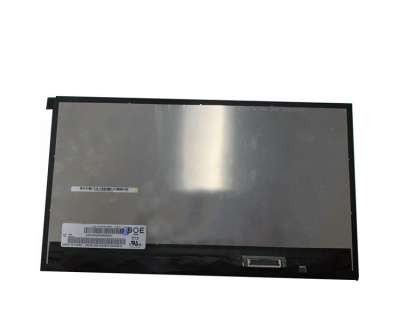

1、BOE DV133FHM-NN0 Application Details
Basic Information : | Brand | BOE | Model | DV133FHM-NN0 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial | |
Screen Size | 13.3 inch | |||
Environment : | Storage Temp. | -20 ~ 60 °C | Operating Temp. | 0 ~ 50 °C |
RoHS | RoHS | Vibration | 1.5G (14.7 m/s²) | |
Typical Features : | Landscape/Portrait，WLED Backlight，With LED Driver，Reverse I/F,Matte | |||
2、BOE DV133FHM-NN0 Mechanical Details
Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.051×0.153 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.153×0.153 (H×V) [166PPI] | |
Mechanical Size : | Active Area(mm) | 293.76(H) × 165.24(V) | Bezel Area(mm) | - |
Outline Dim.(mm) | 299.46(H) × 177.64(V) | Depth(mm) | 2.6/5.9 (Typ./Max.) | |
Outline Features : | Form Style | Flat Rectangle | Shape Style | |
Aspect Ratio | 16:9 (H:V) | Orientation | Landscape / Portrait | |
Mounting : | Without | |||
Other Spec : | Weight | 220g (Typ.) | Treatment | Antiglare |
3、BOE DV133FHM-NN0 Optical Details
Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | ADS, Normally Black, Transmissive | |
Best View on | Symmetry | Response(ms) | 30 (Typ.)(Tr+Td) | |
Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 16.7M (8-bit) |
Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 47% | sRGB | 65% coverage |
Adobe RGB | 49% coverage | DCI-P3 | 49% coverage | |
Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、BOE DV133FHM-NN0 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
Total Consumption: | 5.9W (Max.) |
5、BOE DV133FHM-NN0 Interface Detail
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | TBD | ||
Consumption | 1.4/2.0W (Typ./Max.) | |||||
Signal Type : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
Interface Features : | Position | Down right of panel | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
YEONHO | 05002HR-H51G5(G) | 0.5 mm | 51 pins | 1 pcs | ||
6、BOE DV133FHM-NN0 Backlight Details
Backlight Features : | Type | WLED | Quantity | 8S6P | Position | Edge light type |
Replacement | - | Shape | - | Life Time | 20K(Typ.) (Hours) | |
Interface Features : | Position | - | Type | Included in signal interface | ||
Backlight Driver : | With LED Driver | |||||
Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | - | ||
Consumption | 3.9W (Max.) | |||||
7、BOE DV133FHM-NN0 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W |
40 | 545×465×290 | 15.00 |
