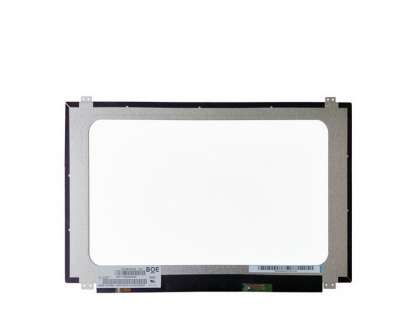

1、BOE NV156FHM-N42 Application Details
Basic Info : | Panel Brand | BOE | Panel Model | NV156FHM-N42 |
Diagonal Size | 15.6" | Application | Laptop，Industrial | |
Panel Type | a-Si TFT-LCD , LCM | |||
Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) | |
Specific Features : | WLED Backlight，With LED Driver，Reverse I/F,Matte | |||
2、BOE NV156FHM-N42 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080, FHD | Dot Pitch | 0.05975×0.17925 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.17925×0.17925 mm (H×V) [141PPI] | |
Mechanical Size : | Display Area | 344.16×193.59 mm (H×V) | Bezel Area | - |
Outline Dim. | 359.5×223.8 mm (H×V) | Outline Depth | 3.05/3.2 (Typ./Max.) mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
Holes & Brackets : | Face mounting holes (8 pcs) on up, down slugs | |||
Other Features : | Weight | 380g (Max.) | Surface | Antiglare, Hard coating (3H) |
3、BOE NV156FHM-N42 Optical Details
Basic Information : | Brightness | 220 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | ADS, Normally Black, Transmissive | |
Viewing Direction | Symmetry | Response Time | 30 | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
Color Temperature | 6485K | Uniformity | 1.25/1.54 (Max.)(5/13 points) | |
1931 Color Gamut : | NTSC Ratio | 45% | sRGB | 62% coverage |
Adobe RGB | 47% coverage | DCI-P3 | 47% coverage | |
Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、BOE NV156FHM-N42 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 3.86W (Max.) |
5、BOE NV156FHM-N42 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | 10S4P | Life Time | 15K(Min.) (Hours) |
Replacement | - | Lamp Shape | 4 strings | Position | Edge light type | |
Interface Features : | Type | Included in signal interface | Position | - | ||
Lamp Driver | With LED Driver | |||||
Driver Electrical : | Voltage Input | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Input | - | ||
Consumption | 2.98W (Max.) | |||||
6、BOE NV156FHM-N42 Interface Detail
Signal Systerm : | eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) | Logic Voltage | - | |||
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 267/485mA (Typ./Max.) | ||
Consumption | 0.88/1.6W (Typ./Max.) | |||||
Interface Features : | Type | Connector | Position | Right of Board | ||
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
STM | MSAK24025P30 | 0.5 mm | 30 pins | 1 pcs | EDP-30P2L-020V | |
7、BOE NV156FHM-N42 Carton Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
30 | 428×373×288 | 13.66 |
