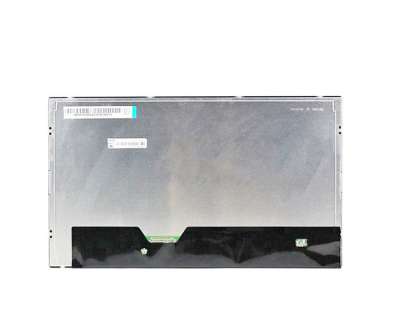

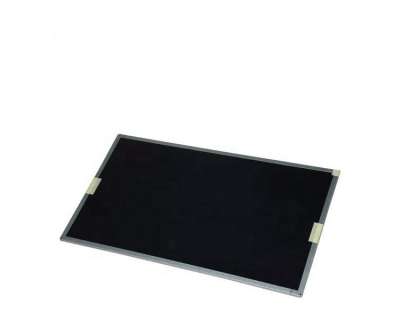

1、BOE EV156FHM-N80-3RA0 Application Details
Basic Info : | Panel Brand | BOE | Panel Model | EV156FHM-N80-3RA0 |
Diagonal Size | 15.6" | Application | Industrial，Medical Imaging | |
Panel Type | a-Si TFT-LCD , LCM | |||
Reliability : | Operating Temp. | 0 ~ 60 °C | Storage Temp. | -20 ~ 60 °C |
RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) | |
Specific Features : | Srgb,WLED Backlight，With LED Driver，Reverse I/F,Matte | |||
2、BOE EV156FHM-N80-3RA0 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080, FHD | Dot Pitch | 0.05975×0.17925 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.17925×0.17925 mm (H×V) [141PPI] | |
Mechanical Size : | Display Area | 344.16×193.59 mm (H×V) | Overall Dim. | 350.66(W)×215.245(H) mm |
Bezel Opening | 348.2(W)×197.6(H) mm | Overall Depth | 2.9 (Max.) mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style | ||
Holes & Brackets : | Without | |||
Other Features : | Weight | 320g (Max.) | Surface | Antiglare (Haze 25%), Hard coating |
3、BOE EV156FHM-N80-3RA0 Optical Details
Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | ADS, Normally Black, Transmissive | |
Viewing Direction | Symmetry | Response Time | 30 (Typ.)(Tr+Td) ms | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6485K | Uniformity | 1.25/1.54 (Max.)(5/13 points) | |
1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 99% coverage |
Adobe RGB | 77% coverage | DCI-P3 | 77% coverage | |
Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、BOE EV156FHM-N80-3RA0 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 8.32/11.77W (Typ./Max.) |
5、BOE EV156FHM-N80-3RA0 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 30K(Min.) (Hours) |
Replacement | - | Lamp Shape | - | Position | Edge light type | |
Interface Features : | Type | Included in signal interface | Position | - | ||
Lamp Driver | With LED Driver | |||||
Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 620/744mA (Typ./Max.) | ||
Consumption | 7.44/8.93W (Typ./Max.) | |||||
6、BOE EV156FHM-N80-3RA0 Interface Detail
Signal Systerm : | eDP (2 Lanes), HBR1 (2.7G/lane) | Logic Voltage | - | |||
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 268/860mA (Typ./Max.) | ||
Consumption | 0.88/2.84W (Typ./Max.) | |||||
Interface Features : | Type | Connector | Position | Down right of panel | ||
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
STM | MSAK24025P30 | 0.5 mm | 30 pins | 1 pcs | EDP-30P2L-020G | |
7、BOE EV156FHM-N80-3RA0 Carton Details
Box Type： | Pcs/Box | Package LWH (mm) | G.W (kgs) |
25 | 495×395×313 | N/A |
