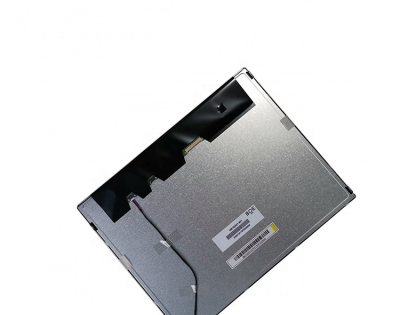

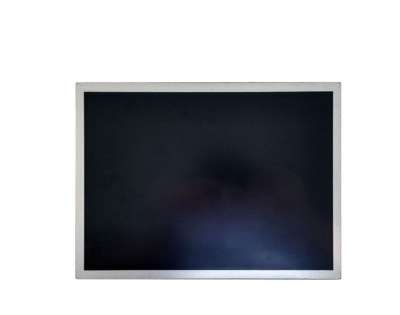

1、BOE EV150X0M-N10 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | EV150X0M-N10 |
Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
Panel Size | 15.0 inch | Designed For | Industrial | |
Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -20 ~ 70 °C |
RoHS | RoHS | Vibration Level | - | |
Features : | Landscape/Portrait，WLED Backlight，Life≥50K hours，With LED Driver， Matte | |||
2、BOE EV150X0M-N10 Optical Details
Basic Detail : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 95% coverage |
Adobe RGB | 73% coverage | DCI-P3 | 77% coverage | |
Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、BOE EV150X0M-N10 Mechanical Details
Pixel Features : | Number of Pixel | 1024(RGB)×768, XGA | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | .099×0.297 mm (H×V) | Pixel Pitch(W×H) | 0.297×0.297 mm (H×V) [85PPI] | |
Physical Size : | Active Viewing | 304.128×228.096 mm (H×V) | Outline Dim. | 306.5×230.1 mm (H×V) |
Outline Dim. | 326.5×253.5 mm (H×V) | Outline Depth | 9.7/10.0 (Typ./Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 4:3 (H:V) | Shape Style | ||
Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
Other Detail : | Weight | 930g | Surface | Antiglare (Haze 25%), Hard coating (3H) |
4、BOE EV150X0M-N10 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 8.72/10.1W (Typ./Max.) |
5、BOE EV150X0M-N10 Interface Details
Signal Electrical : | Input Current | 410/740mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
Consumption | 0.8/1.3W (Typ./Max.) | Signal Interface | LVDS (1 ch, 8-bit) | |||
Interface Features : | Position | - | Type | Connect | ||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
STM | MSB240420HEA | 1.25mm | 20 pins | 1 pcs | ||
6、BOE EV150X0M-N10 Backlight Details
Lamp Features : | Lamp Type | WLED | Amount | 12S4P | Position | Edge light type (Bottom side) | |||||||
Exchange | - | Lamp Shape | 4 strings | Lamp Life | 50K(Min.) (Hours) | ||||||||
Lamp Electrical : | Voltage Input | 36±3.6V | Current Input | 55mA (Typ.) | |||||||||
Consumption | 7.92/8.71W (Typ./Max.) | ||||||||||||
Interface Features : | Position | - | Type | Connector | |||||||||
Backlight Driver : | With LED Driver | ||||||||||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||||||
CviLux | CI4205M1HR0-NH | 1.25mm | 5pins | 1 pcs | |||||||||
Driver Electrical : | Voltage Input | 10.8/12.0/12.6V (Min./Typ./Max.) | Current Input | 550/600/700mA (Min./Typ./Max.) | |||||||||
7、BOE EV150X0M-N10 Carton Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
14 | 510×399×324 | N/A |
