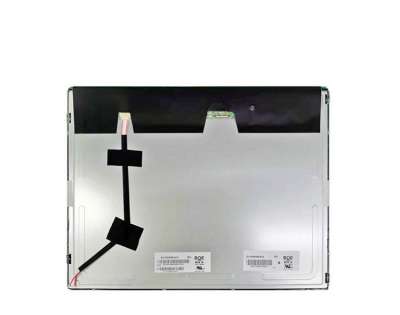

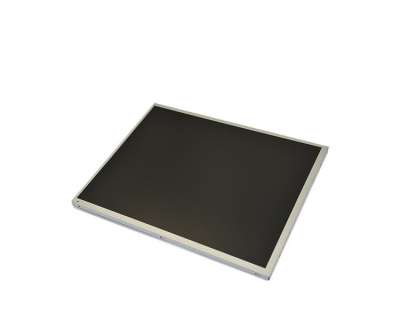

1、BOE HM150X01-N01 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | HM150X01-N01 |
Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
Panel Size | 15.0 inch | Designed For | Industrial | |
Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -20 ~ 70 °C |
RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
Features : | Lamp Repaceble，WLED Backlight，Life≥50K hours，With LED Driver，Upside I/F,6/8bit， Matte | |||
2、BOE HM150X01-N01 Optical Details
Basic Detail : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
Good View at | - | Response Speed | 8 (Typ.)(Tr+Td) ms | |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 59% | sRGB | 74% coverage |
Adobe RGB | 59% coverage | DCI-P3 | 61% coverage | |
Rec.2020 | 44% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、BOE HM150X01-N01 Mechanical Details
Pixel Features : | Number of Pixel | 1024(RGB)×768, XGA | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.099×0.297 mm (H×V) | Pixel Pitch(W×H) | 0.297×0.297 mm (H×V) [85PPI] | |
Physical Size : | Active Viewing | 304.128×228.096 mm (H×V) | Outline Dim. | 307.3×231.3 mm (H×V) |
Outline Dim. | 326.5×253.5 mm (H×V) | Outline Depth | 7.22/10 (Typ./Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 4:3 (H:V) | Shape Style | ||
Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
Other Detail : | Weight | 850g (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
4、BOE HM150X01-N01 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 8.4/10.0W (Typ./Max.) |
5、BOE HM150X01-N01 Interface Details
Signal Electrical : | Input Current | 520/700mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
Consumption | 1.72W (Typ.) | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
Interface Features : | Position | Upper right of panel | Type | Connect | ||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
HRS | DF14H-20P-1.25H | 1.25mm | 20 pins | 1 pcs | LVDS-20P1C8B-060A | |
6、BOE HM150X01-N01 Backlight Details
Lamp Features : | Lamp Type | WLED | Amount | 9S3P | Position | Edge light type (Bottom side) | |||||||
Exchange | Replaceable | Lamp Shape | 3 strings | Lamp Life | 50K(Min.) (Hours) | ||||||||
Lamp Electrical : | Voltage Input | 27.9±1.8V | Current Input | 60mA (Typ.) | |||||||||
Consumption | 4.7/5.1/5.4W (Min./Typ./Max.) | ||||||||||||
Interface Features : | Position | - | Type | Connector | |||||||||
Backlight Driver : | With LED Driver | ||||||||||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||||||
5pins | 1 pcs | ||||||||||||
Driver Electrical : | Voltage Input | 10.8/12.0/12.6V (Min./Typ./Max.) | Current Input | 500±34mA | |||||||||
Consumption | 6.0±0.4W | ||||||||||||
7、BOE HM150X01-N01 Carton Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
10 | - | N/A |
