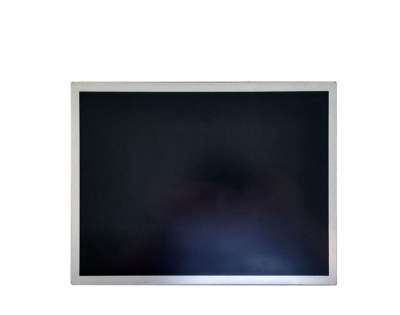

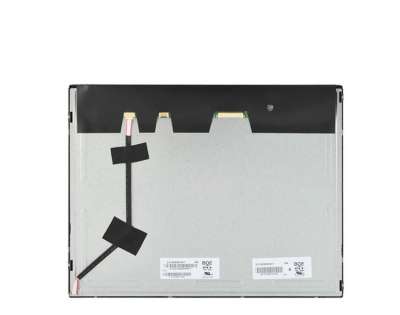

1、BOE DV150X0M-N11 Application Details
Basic Information : | Brand | BOE | Model | DV150X0M-N11 |
Type | LCM a-Si TFT-LCD | Used For | Digital Signage | |
Screen Size | 15.0" | |||
Environment : | Storage Temp. | -20 ~~ 70 °C | Operating Temp. | -20 ~~ 70 °C |
RoHS | RoHS | Vibration | 1.2G (11.76 m/s²) | |
Typical Features : | Landscape/Portrait，WLED Backlight，Life≥50K hours，With LED Driver，Matte | |||
2、BOE DV150X0M-N11 Mechanical Details
Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) [85PPI] | |
Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 306.5(H) × 230.1(V) |
Outline Dim.(mm) | 326.5(H) × 253.5(V) | Depth(mm) | 9.7/10.0 (Typ./Max.) | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio | 4:3 (H:V) | Orientation | Landscape / Portrait | |
Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
Other Spec : | Weight | 930g | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
3、BOE DV150X0M-N11 Optical Details
Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | ADS, Normally Black, Transmissive | |
Best View on | Symmetry | Response(ms) | 30 (Typ.)(Tr+Td) | |
Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 95% coverage |
Adobe RGB | 73% coverage | DCI-P3 | 77% coverage | |
Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、BOE DV150X0M-N11 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 8.72/10.1W (Typ./Max.) |
5、BOE DV150X0M-N11 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 410/740mA (Typ./Max.) | ||||
Consumption | 0.8/1.3W (Typ./Max.) | |||||||
Signal Type : | LVDS (1 ch, 8-bit) | Signal Voltage | - | |||||
Interface Features : | Position | - | Type | Connector | ||||
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration | ||
STM | MSB240420HEA | 1 pcs | 20 pins | 1.25 mm | ||||
6、BOE DV150X0M-N11 Backlight Details
Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type (Bottom side) | |
Replacement | - | Quantity | 12S4P | Life Time | 50K(Min.) (Hours) | ||
Lamp Electrical : | Voltage Supply | 36±3.6V | Current Supply | 55mA (Typ.) | |||
Consumption | 7.92/8.71W (Typ./Max.) | ||||||
Interface Features : | Position | - | Type | Connector | |||
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration | |
CviLux | CI4205M1HR0-NH | 1 pcs | 5 pins | 1.25 mm | |||
Backlight Driver : | With LED Driver | ||||||
Driver Electrical : | Voltage Supply | 10.8/12.0/12.6V (Min./Typ./Max.) | Current Supply | 550/600/700mA (Min./Typ./Max.) | |||
7、BOE DV150X0M-N11 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
14 | 510×399×324 | N/A |
