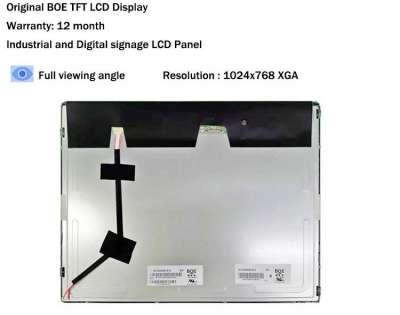

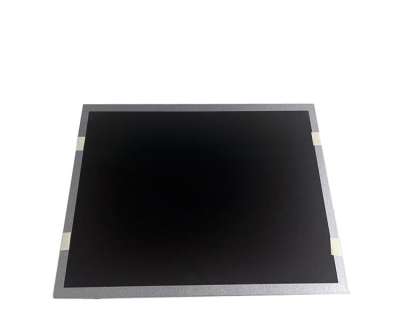

1、BOE DV150X0M-N12 Application Details
Basic Information : | Brand | BOE | Model | DV150X0M-N12 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial，Digital Signage | |
Screen Size | 15.0inch | |||
Environment : | Storage Temp. | -20 ~ 70 °C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration | 1.2G (11.76 m/s²) | |
Typical Features : | Landscape/Portrait，WLED Backlight，Life≥50K hours，With LED Driver， Matte | |||
2、BOE DV150X0M-N12 Mechanical Details
Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) [85PPI] | |
Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 306.5(H) × 230.1(V) |
Outline Dim.(mm) | 326.5(H) × 253.5(V) | Depth(mm) | 9.7 (Max.) | |
Outline Features : | Form Style | Flat Rectangle | Shape Style | |
Aspect Ratio | 4:3 (H:V) | Orientation | Landscape / Portrait | |
Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
Other Spec : | Weight | 930g | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
3、BOE DV150X0M-N12 Optical Details
Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | ADS, Normally Black, Transmissive | |
Best View on | Symmetry | Response(ms) | 30 (Typ.)(Tr+Td) | |
Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 95% coverage |
Adobe RGB | 73% coverage | DCI-P3 | 77% coverage | |
Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、BOE DV150X0M-N12 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
Total Consumption: | 8.72/10.1W (Typ./Max.) |
5、BOE DV150X0M-N12 Interface Detail
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 410/740mA (Typ./Max.) | ||
Consumption | 0.8/1.3W (Typ./Max.) | |||||
Signal Type : | eDP (1 Lane) | Logic Voltage | - | |||
Interface Features : | Position | - | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
STM | MSAK24025P30 | 0.5 mm | 30 pins | 1 pcs | EDP-30P1L-030A | |
6、BOE DV150X0M-N12 Backlight Details
Backlight Features : | Type | WLED | Quantity | 12S4P | Position | Edge light type |
Replacement | - | Shape | 4 strings | Life Time | 50K(Min.) (Hours) | |
Interface Features : | Position | - | Type | Included in signal interface | ||
Backlight Driver : | With LED Driver | |||||
Driver Electrical : | Voltage Supply | 10.8/12/12.6V (Min./Typ./Max.) | Current Supply | 550/600/700mA (Min./Typ./Max.) | ||
Consumption | 7.92/8.71W (Typ./Max.) | |||||
7、BOE DV150X0M-N12 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W |
14 | 510×399×324 | N/A |
