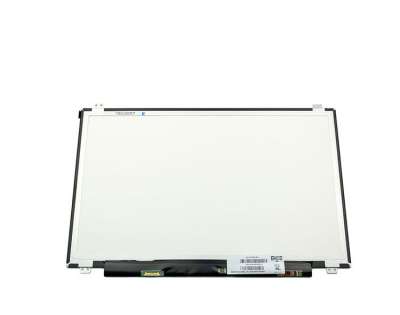

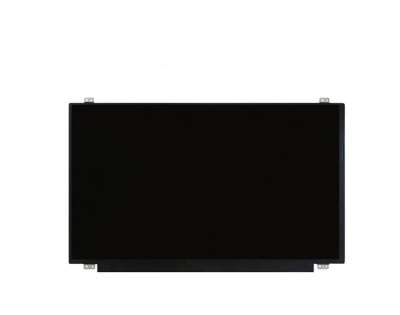

1、BOE NV173FHM-N41 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | NV173FHM-N41 |
Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
Panel Size | 17.3 inch | Designed For | Laptop，Industrial，Medical Imaging | |
Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
Features : | Srgb，WLED Backlight，With LED Driver，Reverse I/F,Matte | |||
2、BOE NV173FHM-N41 Optical Details
Basic Detail : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) ms | |
Viewing Angle | 85/85/85/85(Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
Color Temperature | 6485K | White Variation | 1.25/1.54 (Max.)(5/13 points) | |
1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 98% coverage |
Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、BOE NV173FHM-N41 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.0663×0.1989 mm | Pixel Pitch(W×H) | 0.1989×0.1989 mm [127PPI] | |
Physical Size : | Active Viewing | 381.888(W)×214.812(H) mm | Overall Dim. | 398.1(W)×250.5(H) mm |
Bezel Opening | - | Overall Depth | 4.0 (Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 16:9 | Shape Style | Flat (PCBA Flat, T3.4~4.0mm) | |
Fixation : | Face mounting holes (8 pcs) on up, down slugs | |||
Other Detail : | Mass | 550g | Surface | Antiglare |
4、BOE NV173FHM-N41 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 7.0W (Max.) |
5、BOE NV173FHM-N41 Interface Detail
Signal Electrical : | Input Current | 240mA (Typ.) | Input Voltage | 3.3V (Typ.) | ||
Consumption | 0.8/2.0W (Typ./Max.) | Signal Interface | eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) | |||
Interface Features : | Position | Left of Board | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
UJU | IS050-L30B-C10 | 0.5mm | 30 pins | 1 pcs | EDP-30P2L-020O | |
6、BOE NV173FHM-N41 Backlight Details
Lamp Features : | Lamp Type | WLED | Amount | 10S6P | Position | Edge light type | |||
Exchange | - | Lamp Shape | 6strings | Lamp Life | 15K(Min.) (Hours) | ||||
Lamp Electrical : | Input Current | 23.5mA (Typ.) | Input Voltage | 30.0V (Max.) | |||||
Interface Features : | Position | - | Type | Included in signal interface | |||||
Lamp Electrical : | Voltage Input | 6.0/12.0/20.0V (Min./Typ./Max.) | Current Input | - | |||||
Consumption | 5W (Max.) | ||||||||
Backlight Driver : | With LED Driver | ||||||||
7、BOE NV173FHM-N41 Carton Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
38 | 564×517×327 | N/A |
