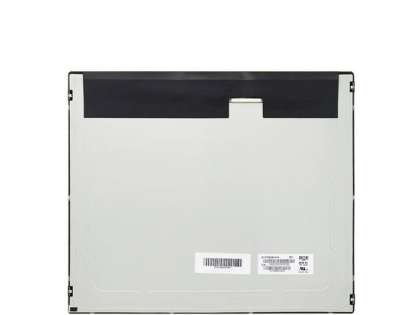

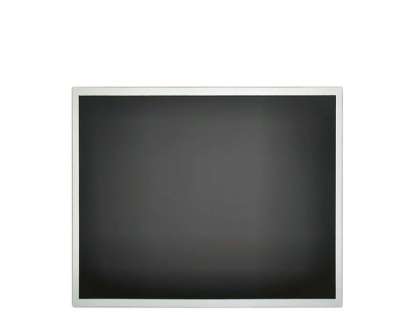

1、BOE DV170E0M-N12-KW Application Details
Basic Information : | Brand | BOE | Model | DV170E0M-N12-KW |
Type | LCM a-Si TFT-LCD | Used For | Digital Signage | |
Screen Size | 17.0" | |||
Environment : | Storage Temp. | -20 ~ 70 °C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration | - | |
Typical Features : | Landscape/portrait，WLED Backlight，Upside I/F，Matte | |||
2、BOE DV170E0M-N12-KW Optical Details
Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | HADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 94% coverage |
Adobe RGB | 73% coverage | DCI-P3 | 76% coverage | |
Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、BOE DV170E0M-N12-KW Mechanical Details
Pixel Features : | Number of Pixel | 1280(RGB)×1024, SXGA | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.088×0.264 mm | Pixel Pitch(W×H) | 0.264×0.264 mm [96PPI] | |
Physical Size : | Active Viewing | 337.92(W)×270.336(H) mm | Overall Dim. | 358.5(W)×296.5(H) mm |
Bezel Opening | 341.72(W)×274.14(H) mm | Overall Depth | 8.7/10.8 (Typ./Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 5:4 | Shape Style | ||
Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
Other Detail : | Mass | 1.35Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
4、BOE DV170E0M-N12-KW Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 12.36W (Typ.) |
5、BOE DV170E0M-N12-KW Interface Details
Signal Electrical : | Input Current | 0.6/1.0A (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
Consumption | 3.0/5.5W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
Interface Features : | Position | Upper right of Board | Physical Type | Connector | ||
Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
UJU | IS100-L30O-C23 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
6、BOE DV170E0M-N12-KW Lightting Details
Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) | |||||||
Exchange | - | Amount | 12S4P | Life | 30K(Min.) (Hours) | ||||||||
Lamp Electrical : | Input Voltage | 32.4/36/38.4V (Min./Typ./Max.) | Input Current | 65mA (Typ.) | |||||||||
Consumption | 8.42/9.36/9.99W (Min./Typ./Max.) | ||||||||||||
Interface Features : | Position | Down left corner | Physical Type | Connector | |||||||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||||
E&T | 3707K-S06N-21L | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | ||||||||
Backlight Driver : | No | ||||||||||||
7、BOE DV170E0M-N12-KW Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
14 | 512×442×357 | N/A |
