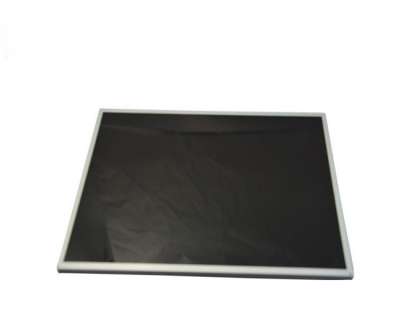

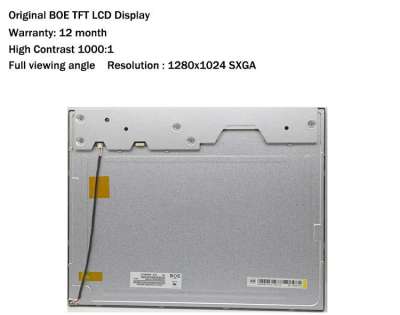

1、BOE ZV190E0M-N1 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | ZV190E0M-N1 |
Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
Panel Size | 19.0 inch | Designed For | Industrial | |
Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -20 ~ 75 °C |
RoHS | RoHS | Vibration Level | 1.05G (10.3 m/s²) | |
Features : | Wide Color Gamut，Srgb, WLED Backlight，Life≥50K hours，With LED Driver， Upside I/F | |||
2、BOE ZV190E0M-N1 Optical Details
Basic Detail : | Luminance | 450 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
Color Temperature | 6485K | White Variation | 1.33 (Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 84% | sRGB | 100% coverage |
Adobe RGB | 85% coverage | DCI-P3 | 87% coverage | |
Rec.2020 | 63% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、BOE ZV190E0M-N1 Mechanical Details
Pixel Features : | Number of Pixel | 1280(RGB)×1024 [SXGA] | Arrangement | RGB Vertical Stripe |
Dot Pitch | 0.0976×0.2928 mm | Pixel Pitch(W×H) | 0.2928×0.2928 mm [86PPI] | |
Physical Size : | Active Viewing (mm) | 374.784(W)×299.827(H) | Overall Dim. | 396(W)×324(H) mm |
Bezel Opening | 378.8(W)×303(H) mm | Depth(mm) | 9.9/13.38 (Typ./Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 5:4 | Shape Style | ||
Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
Other Detail : | Mass | 1.80Kgs (Typ.) | Surface | |
4、BOE ZV190E0M-N1 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 19.2/23.5W (Typ./Max.) |
5、BOE ZV190E0M-N1 Interface Detail
Signal Electrical : | Input Current | 0.60/1.1A (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
Consumption | 3.0/5.5W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
Interface Features : | Position | Upper right of panel | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
HRS | DF14H-30P-1.25H(56) | 1.25mm | 30 pins | 1 pcs | LVDS-30P2C8B-200A | |
6、BOE ZV190E0M-N1 Backlight Details
Lamp Features : | Lamp Type | WLED | Amount | 11S4P | Position | Edge light type | ||||||
Exchange | - | Lamp Shape | 4 strings | Life Time | 50K(Min.) Hours | |||||||
Lamp Electrical : | Input Current | 110mA (Typ.) | Input Voltage | 34.1/36.3V (Typ./Max.) | ||||||||
Interface Features : | Position | - | Type | Connector | ||||||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | ||||||
JST | SM08B-GHH-TB | 1.25mm | 8pins | 1 pcs | ||||||||
Backlight Driver : | With LED Driver | |||||||||||
Driver Electrical : | Input Current | 1.35/1.666A (Typ./Max.) | Input Voltage | 12.0±1.2V | ||||||||
Consumption | 16.2/18W (Typ./Max.) | |||||||||||
7、BOE ZV190E0M-N1 Carton Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
11 | 478×374×413 | 21.60 |
