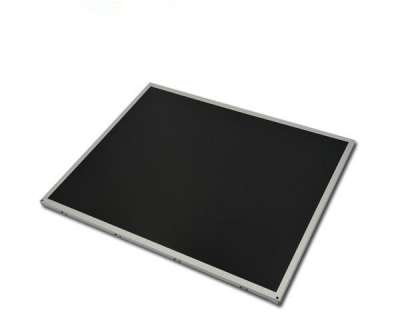

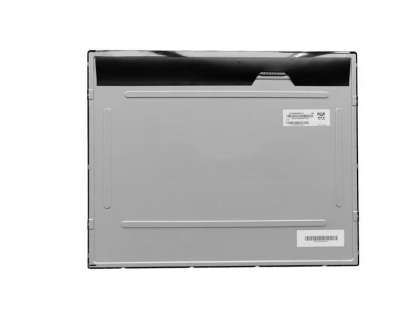

1、BOE DV190E0M-N11 Application Details
Basic Information : | Brand | BOE | Model | DV190E0M-N11 |
Type | LCM a-Si TFT-LCD | Used For | Digital Signage | |
Screen Size | 19.0" | |||
Environment : | Storage Temp. | 0 ~ 50 °C | Operating Temp. | -20 ~ 60 °C |
RoHS | RoHS | Vibration | - | |
Typical Features : | Landscape/portrait，WLED Backlight，Upside I/F，Matte | |||
2、BOE DV190E0M-N11 Optical Details
Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | HADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 75% | sRGB | 97% coverage |
Adobe RGB | 75% coverage | DCI-P3 | 78% coverage | |
Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、BOE DV190E0M-N11 Mechanical Details
Pixel Features : | Number of Pixel | 1280(RGB)×1024, SXGA | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.0976×0.2928 mm | Pixel Pitch(W×H) | 0.2928×0.2928 mm [86PPI] | |
Physical Size : | Active Viewing | 374.784(W)×299.827(H) mm | Overall Dim. | 396(W)×324(H) mm |
Bezel Opening | 376.78(W)×303.0(H) mm | Overall Depth | 8.7/10.4 (Typ./Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape / Portrait |
Aspect Ratio(W:H) | 5:4 | Shape Style | Normal bezel | |
Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
Other Detail : | Mass | 1.52Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
4、BOE DV190E0M-N11 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 10.64/14.22W (Typ./Max.) |
5、BOE DV190E0M-N11 Interface Details
Signal Electrical : | Input Current | 0.4/1.0A (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
Consumption | 2.0/5.0W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
Interface Features : | Position | Upper right of panel | Physical Type | Connector | ||
Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
UJU | IS100-L30O-C23 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
6、BOE DV190E0M-N11 Lightting Details
Lamp Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) | |||||||
Exchange | - | Amount | 24S2P | Life | 30K(Min.) (Hours) | ||||||||
Lamp Electrical : | Input Voltage | 64.8/72.0/76.8V | Input Current | 60mA (Typ.) | |||||||||
Consumption | 8.64/9.22W (Typ./Max.) | ||||||||||||
Interface Features : | Position | Down left corner | Physical Type | Connector | |||||||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||||
JST | SM06B-SHJH(HF) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CNAANC | ||||||||
Backlight Driver : | No | ||||||||||||
7、BOE DV190E0M-N11 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
12 | 511×472×405 | N/A |
