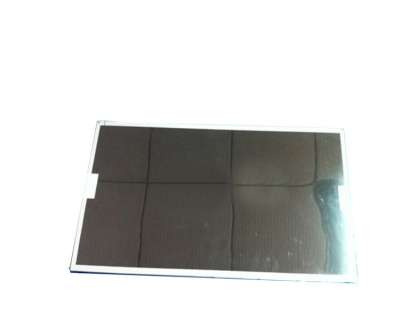

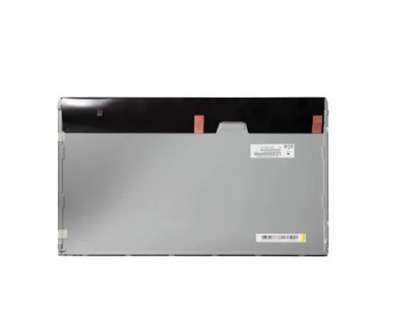

1、BOE UV215FHM-N10 Application Details
Basic Information : | Brand | BOE | Model | UV215FHM-N10 |
Type | LCM a-Si TFT-LCD | Used For | Digital Signage | |
Screen Size | 21.5" | |||
Environment : | Storage Temp. | -30~85 °C | Operating Temp. | -20 ~ 80 °C |
RoHS | RoHS | Vibration | ||
Typical Features : | WLED Backlight，Upside I/F，Matte | |||
2、BOE UV215FHM-N10 Optical Details
Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 17 (Typ.)(G to G) (ms) | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.285; Wy:0.293 | Support Color | 16.7M (6-bit + Hi-FRC) |
Color Temperature | 9289K | White Uniformity | 1.33 (Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 97% coverage |
Adobe RGB | 74% coverage | DCI-P3 | 75% coverage | |
Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、BOE UV215FHM-N10 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.08275×0.24825 mm | Pixel Pitch(W×H) | 0.24825×0.24825 mm [102PPI] | |
Physical Size : | Active Viewing | 476.64(W)×268.11(H) mm | Outline Dim.(mm) | 495.6(W)×292.2(H) mm |
Bezel Area(mm) | 479.8(W)×271.3(H) mm | Depth(mm) | 8.2/11.2 (Typ./Max.) | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape / Portrait |
Aspect Ratio(W:H) | 16:9 (H:V) | Shape Style | ||
Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
Other Detail : | Mass | 1.97Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
4、BOE UV215FHM-N10 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 20.9/25.6W (Typ./Max.) |
5、BOE UV215FHM-N10 Interface Details
Signal Electrical : | Input Current | 700/1500mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
Consumption | 3.5/6.75W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
Interface Features : | Position | Upper right of panel | Physical Type | Connector | ||
Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
UJU | IS100-L30O-C23 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
6、BOE UV215FHM-N10 Lightting Details
Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type | |||||||
Exchange | - | Amount | 17S3P | Life | 30K(Min.) (Hours) | ||||||||
Lamp Electrical : | Input Voltage | 51/56.1V (Typ./Max.) | Input Current | 102mA (Typ.) | |||||||||
Consumption | 20.81/22.89W (Typ./Max.) | ||||||||||||
Interface Features : | Position | Down left corner | Physical Type | Connector | |||||||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||||
E&T | 3707K-Q06N-08X | 1.0 mm | 6 pins | 1 pcs | BLE-CCAACC | ||||||||
Backlight Driver : | No | ||||||||||||
7、BOE UV215FHM-N10 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
12 | 554×324×390 | 25.4Kgs |
