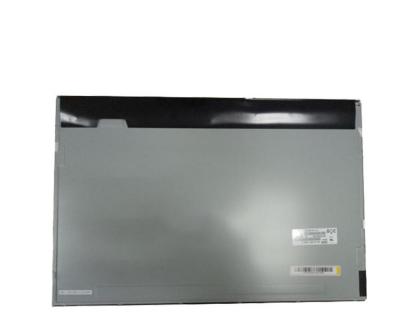

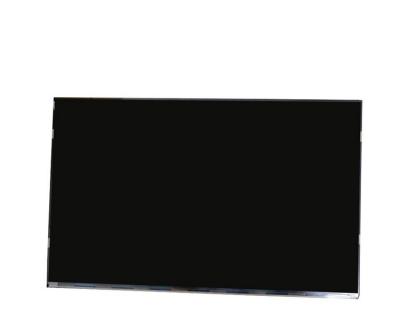

BOE EV238FHM-N12 Application Details
| Basic Detail : | Panel Brand | BOE | Model Name | EV238FHM-N12 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 23.8” | Designed For | Medical Imaging | |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | WLED Backlight,With LED Driver | |||
BOE EV238FHM-N12 Optical Details
| Basic Information : | Luminance | 300 cd/m²(Min.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 20 (Typ.)(Tr+Td) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.332 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6461K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 96% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE EV238FHM-N12 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch (mm) | 0.0915*0.2745 mm | Pixel Pitch (mm) | 0.2745*0.2745 mm [92PPI] | |
| Physical Size : | Active Viewing(mm) | 527.04(W)*296.46(H) mm | Bezel Area (mm) | 530.2(W)*299.6(H) mm |
| Outline Dim. (mm) | 543(W)*317.4(H) mm | Outline Depth | 9/11.4 (Typ./Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 2.39Kgs (Typ.) | Surface | Hard coating |
BOE EV238FHM-N12 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
BOE EV238FHM-N12 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | |||||||
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 0.85/1.75A (Typ./Max.) | ||||
| Consumption | 4.25/8.75W (Typ./Max.) | |||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| UJU | IS100-L30O-C23 | 1.0mm | 30pins | 1 pcs | ||||
BOE EV238FHM-N12 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type - | ||||||
| Exchange | - | Lamp Shape | - | Lamp Life | 30K(Min.) (Hours) | |||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | ||||||
| CviLux | CI0114M1HR0-NH | 2.0mm | 14pins | 1 pcs | ||||||||
| Backlight Driver : | With LED Driver | |||||||||||
| Driver Electrical : | Input Voltage | 12±2.0V | Input Current | - | ||||||||
| Consumption | 17.4/20.3W (Typ./Max.) | |||||||||||
BOE EV238FHM-N12 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*;H) |
| 8pcs / box | - | 619*238*448 mm |
